Spare part list- ignition burner

Item description                                                No of required

Motor     2

Control box  2

Pump couplings   4

Photo cells    2

Sets ht. leads       2

Sets electrodes    4

Oil valve       1

Nozzle   2

Parameter Compliance

Type of Waste To treat medical waste, categories A,B,C,D,E

Type of Incinerator Pyrolytic

Nominal Burn rate 50 t0 60 kg/ hr at 3500Kcal/Kg

Loading Manual, Batch Load

De  Ashing Automatic or Manual batch de ashing

The incinerator must avoid the release of black smoke and fine dust during the loading

Primary chamber capacity 2-3 m³

The insulation   of the combustion chamber should be composed   of refractory bricks, having a higher content of

aluminium and insulates,

The plate of combustion in carborundum avoiding the fixing of glass and slags

Hours of operation /Day >10 hrs

Max Operating Temperatures 1400 °C

Normal Operating Temperatures(Primary)  >850 °C

Operating Temperature(Secondary) >1100 °C

It should have digital temperatures regulator( Temperatures regulator in digital watch)

Carbon content of ashes <2%

The installation should be completely free from visible smoke as well as offensive odours

Residence time in second chamber 2 second minimum

The internal diameter of the Chimney :Ø 400

Height of stack >8m

Burner operation Automatic On/Off

Fuel Diesel

Fuel consumption at raed capacity >7kg waste /ltr

Electricity consumption <2kW at rated capacity

Operating Voltage 220 – 240V AC 50Hz

Spare parts Supply for 1 year quoted as option

Consumables Supply for 1 year of operation to be mentioned as option

Warranty Parts and service support: 1 year minimum post comissioning

Service support <72 hours

Emission standard Compliance BS3316 or equivqlent standard

Process filtering system Scruber to be mentioned as option

CE Manufacturing Compliance BS EN 746-2-1997

Design Specification Type A,B,C,D,and E of medical waste

Installation and Comissioning  Included in condition of supply

Training in preventive and curative maintenance and use of the incinerator Operator training inclusive in offer

Capacity to treat Plastic Not less than 40% by weight

Programming controls. Programming controls should be verified as controlling and cycling the unit in the

intended manner. Proper prepurge, ignition, postpurge, and modulation should be verified. A stopwatch should be used

for verifying intervals of time.

?     Fuel supply controls. The satisfactory operation of the fuel control solenoid valves for all conditions of

operation and shutdown should be verified.

?     Low voltage test. A low voltage test should be conducted on the incinerator unit to satisfactorily demonstrate

that the fuel supply to the burners will be automatically shut off before an incinerator malfunction results from the

reduced voltage.

?     Switches. All switches should be tested to verify proper operation.

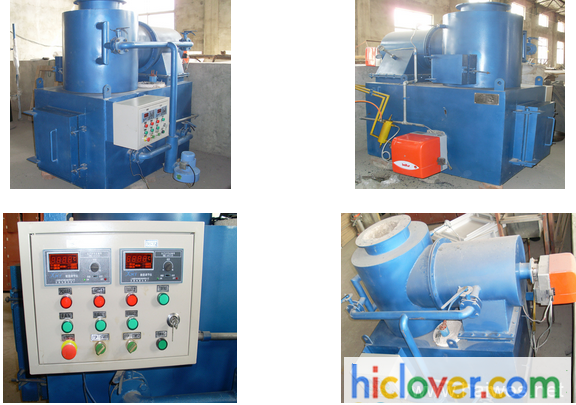

high-capacity, powerful, European Standard incinerator,ideal for high volume incineration,with integral after-burner

for greater efficiency and emissions control.

Waste Type and Burn Rate

Designed specifically for use by poultry farmers,

sheep farm owners,   abbatoirs and for pet

cremation. The incinerator will burn up to 50kg of

waste per hour (up to 150kg burn

Construction

Mild steel welded fabrication consisting of sheet steel

and structural section supports.

Lining

Monolithic high grade refractory concrete with high grade insulation backing.

Burners

Fully automatic, high-efficiency burners with electronic ignition, flame recognition and combustion control devices

fitted.

Loading – Ash removal

Manual ash removal from the primary chamber. (Ash doors are available on request).

Exterior finish

Multi-coat high quality, high-temperature aluminium enamel top coat paint, finished in silver.

Control

Waste Incinerator Capacity

The waste incinerator units shall be designed to burn medical waste load of capacity 50 kg/hr with calorific values

ranging from 2,300 kJ/kg to 30,000 kJ/kg at a designed thermal rate of 1,440,000 kJ/hr.

Method of Waste Charging

Waste shall be fed into the primary chamber manually, that is by hand. Semi-automatic or automatic feeding systems are

not required.

Method of Burning

The primary and secondary burners shall be equipped with at least one fuel oil burner each. Waste shall be manually fed

into primary chamber and heated to required ignition temperature of at least 600 degree Celsius. A controlled amount of

air shall be admitted by combustion air blower to maintain the necessary reaction heat required for thermal degradation

of waste. Smoke, ashes, volatile gases, etc generated from the primary chamber shall be effectively and efficiently

ignited in the secondary chamber. Emission through the stack shall be within environmental standards.

Combustion Chambers

The internal lining for combustion chambers shall be made up of pre-determined thickness and high temperature stability

insulation, high strength firebricks and castible refractory. The temperature rating for refractory shall be at least

1,500 degree Celsius. The casing of the chamber shall be constructed from high grade mild steel plate. Lifting devices

such as eye bolts and lifting lugs shall be fitted as standard.

(G) Technical Specifications of Spore tester Features and Specifications :

• It is an auto reader for Bacillus Stearothermophilus to test the spore discharge after treatment (sterilization) of

the waste.

• should be a very Accurate, reliable and easy-to-use units for reading rapid readout biological indicators (RRBI) for

steam sterilizer

• Automatically reads indicator results.
• There should be red plus (+) light to indicate sterilization failure and a green negative (-) light to confirm that

the sterilization conditions have been met.

• Audible alarm in case of positive result detected and RRBI is removed from the reader before final results have been

detected.

• There should also be a Buzzen alarm OFF button.
• The unit should be maintenance-free equipment and there should not be any light bulbs to replace for maintenance.
• At least 12 Incubation/reader wells
• A crushing well
• Digital display
• A press-button by pressing which the incubation time remaining for each individual incubation/reader well that

contains a RRBI will be displayed.

• Power: 220 VAC, 50Hz

Accessories to be included;

• Samples/kits-100 pcs

———————————–

• Failure to establish the authenticity of the certificate the bidder is liable to render the bid non-responsive and

bidder open to action in the line with applicable regulations and act.

• Original catalogue must be submitted
• Original data sheet must be submitted

Lot-B

1. Solidifier (Fluid waste disposal Product)

Liquid Waste Solidifier for Water Based.

Special Features of Solidifier

21b bottle

• Effectively solidifies potentially serious infectious waste quickly
• Quickly penetrates to solidify blood and body fluid to convert Gels in seconds
• No shaking required
• Retains solidity to prevent spills and leaks for safe and easy bagging and easy Transport to disposal
• Concentrated formula: one ounce solidifies 1000 cc of liquid
• Dissolvable pouches gel 500 cc and 1000 cc, eliminating plastic bottle waste Chlorine-free for non-toxic incineration

Physical/Chemical Characteristics:

Boiling Point ( F) : N/A   Appearance & Odor: Off white,

odorless

Vapor Pressure (mm Hg) : N/A Volatiles (‘% by weight):

N/A

Vapor Density (Air = 1): N/A     Evaporation Rate (n-

butylacetate = 1): N/A

HMIS Classification:

Health: 1: Flammability: 1

Reactivity Data:

Stability: Stable

Conditions to Avoid: None known

Incompatibility (materials to avoid): Strong oxidizers

Hazardous Decomposition: Thermal decomposition: CO, Co2, and NOx hydrocarbons

Hazardous Polymerization: Will not occur

Handling and Storage Precautions:

Store in cool, dry place. Avoid breathing powder. Avoid eye and skin contact. Store in tightly closed container. 80% of

shelf life should be present at the time of supply.
