50-100-150-200 Kgs per Hour Solid Waste Incinerator Model TS150 PLC 1570Liters Chamber


Waste Incinerator Model TS150 PLC, Overview

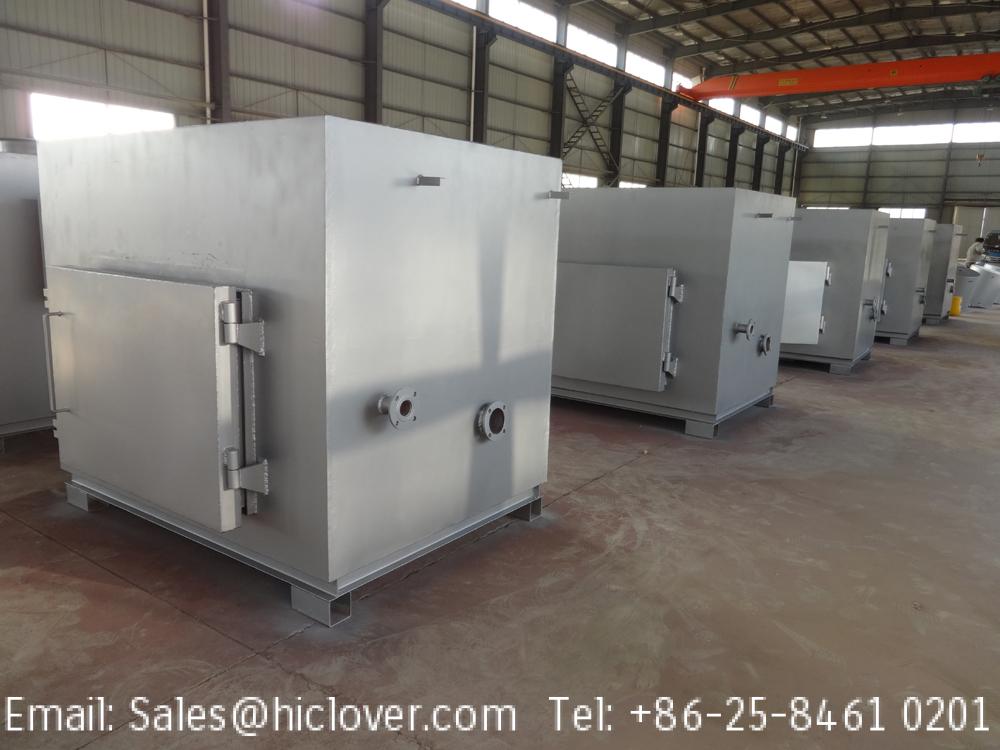

This model is small-scale waste incineration equipment for small waste output.

Construction is dual/double combustion chamber with 02 sets oil burner, batch load
incineration equipment. Waste feed chamber is 1570Liters (1.57m3, TS150 PLC).
Primary & Secondary combustion chambers and smoke filter chamber.
Batch load on the bottom of chamber. Incinerator PLC panel control suit for local operation.


Primary Combustion Chamber:

※Main Feature:

— Double Combustion Chamber
— Double Italy Burner
— Smoke Filter included
–Burning Rate: 50-200kgs per hour optional
–Primary Combustion Chamber: 1.57M3(1570Liters)
— Incinerator Mainbody steel: 8mm thickness
— Paint for outside face: 800°C Rate

Chamber Material: High Alumina Fire Brick Wall, 1750℃ Rate
— Idea for campsite average or below 600 people

— Chimney: 10 Meters, Stainless steel


Feeding door primary chamber:


Items/Model

TS150(PLC)


Principle

Waste Incineration Treatment

Burn Rate

Average 150 kg/hour

*(50/100/200kgs/hour optional)

Feed Capacity

Average 750kg/feeding

Control Mode

PLC(Programmable Logic Controller Incinerator)

Main Body Steel

8mm thickness

Chamber Material

High Alumina Fire Brick Wall, 1750℃ Rate

Paint for outside face

800°C Rate

Combustion Chamber

1570L

Internal Dimensions

150x100x105cm

Secondary Chamber

750L

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

210/230V 50/60Hz

Power

0.9Kw

Oil Consumption (kg/hour)

Average 20.4-28.0(D.O)

Gas Consumption (m3/hour)

***

Temperature Monitor

Digital Display

Temperature Protection

Yes

Oil Tank

300L

Feed Door

80x60cm

Chimney

10Meter

Chimney Type

Stainless Steel

1st. Chamber Temperature

800-1000

2nd. Chamber Temperature

1000-1200

Residency Time

2.0 Sec.

Gross Weight

8500kg

External Dimensions

300x160x280cm(without chimney)






Waste Incinerators
Medical Waste Incinerator
Pet Animal Cremation
Solid Waste Incinerator

Tel:  +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Nanjing Clover Medical Technology Co.,Ltd.


Hiclover incinerator 100-150kgs a hour


Model

YD-100


Burning Rate

100-150 kgs/hour

Key Combustion Chamber

2000 Liters

Second Combustion Chamber

500 Liters

Feed Setting

Handbook

Voltage

220V/380V

Power

2.5 Kw

Gas Kind

Diesel Oil

Heater

Italy Original

Oil Intake (Diesel Oil)

Typical 28 kg/hour

Gas Usage (Gas)

***

Internal Dimensions

180x115x98 centimeters (primary Room )

External Dimensions

270x185x280cm (without chimney)

Temperature Display

Yes

Oil Tank Capacity( if oil fuel)

200 Liters

Door Opening

55 x 80cm

Chimney Length

6.0 Meters

Smokeshaft Kind

Steel

Equipment Gross Weight

9000 kgs

Procedure Technical Specs

Primary Chamber Temperature Level

800 ℃–– -1000 ℃

Secondary Chamber Temperature Level

1000 ℃ -1200 ℃

Residency Time

2.0 Sec.

Burning Efficiency

> 98 percent

Waste Lower Calorific Power


HICLOVER – Medical Environmental

3500Kcal



Waste Incinerators
Medical Waste Incinerator
Pet Animal Cremation
Solid Waste Incinerator

Tel:  +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Nanjing Clover Medical Technology Co.,Ltd.




eco pleasurable burner


50 mattress medical care centre as well as additionally would like to have a recommendation for burner which could effectively deal with the tons of 50 mattress hospital.Incinerator for burnable garbage (newspaper & & & & organic ) device ability (100/150 lts). Bio Medical Waste Incinerators,

Ability: 50kgs a hr Medical Waste Burner Design TS50 (PLC) with both option on Fuel (Gas as well as additionally/ or Diesel2 Burners
1 Blower environmentally friendly incinerator for shedding polyproplylene bags we have 10 tons weekly


Municipal Waste Incinerator


Basic Info.

Export Markets:Global

Product Description

Key Attributes:  * All versions with Dual combustion chamber.  * Stainless Steel chimney/stack, long lifetime. *based on order  * High fever, long lifetime of incinerator.  * Free or minimum installation on site.  * High burn rate, from 10kgs to 500kgs per hour, up to 6ton per day.  * PLC Control Plane. *based on order  New Design for pet animal cremation business.  * One year warranty on incinerator and components in stock.  Application Scope:  1. Hospital& practice: Iatric Waste, Infectious Waste, Dressing, Bio-Waste, Medicine.  2. Slaughter House &Pet Hospital &Farm: Dead Animal, Bio-Waste.  3. Community & Sea Port & Station: Municipal Solid Waste, etc.  4. Laboratories, Remote Locations, Disaster Relief Operations, Animal Cremation

Nanjing Clover Medical Technology Co., Ltd. is a leading waste incinerator manufacturer in China. We are local manufacturer and one of the largest exporter of China. Pyrolytic incinerator gear technical is primary waste treatment all the world, for Medical Waste, Animal Incineration, incinerator 100kg each batch. Web, incinerator/portable waste incinerator, incinerators 30 kgs capability, incinerators for hospitals out of China, Pet cremation and other good wste. The potential from 10kgs/Hr. To 500kgs/Hr. , up to 6ton per day. Currently we supply different series for local client requirements and design upgraded incinerator with our top technology. The upgraded design characteristic of our assortment of incinerators create them one of the most cost effective on the planet.

Items/Model YD-200 YD-300 YD-500 YD-600
Burning Rate (kgs/Hour) 200 kgs/Hr. 300 kgs/Hr. 500 kgs/Hr. 600 kgs/Hr.
Feed Capacity (kgs) 400 kgs 500 kgs 800 kgs 1100 kgs
Equipment Weight 7600 kgs 8300 kgs 13000 kgs 16500 kgs
Primary Chamber (Liters) 2000 2400 4000 5500
Secondary Chamber (Liters) 500 1200 1500 1500
External Dimensions (cm) 270 x 185 x 380 260x220x420 320x220x460 360 x 220 x 475
Internal Dimensions (cm) 180 x 115 x 96 220x110x100 257x147x108 300 x 147 x 125
Oil Tank(Liters) 300 500 500 500
Door Opening (cm) 59 x 81 90 x 110 108 x 128 108 x 128
Chimney (M) 10 10 14 14
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Secondary Chamber  YES YES YES YES
Mix-Combustion Chamber YES YES YES YES
Smoke Filter Chamber YES YES YES YES
Combustion Fuel Oil/Gas Oil/Gas Oil/Gas Oil/Gas
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Temperature Monitoring YES YES YES YES

hiclover.com macau pet cremation incinerator


Presently, we supply different series for local customer requirements and design

updated incinerator with our leading technology. The updated design feature
of our range of incinerators make them one of the most cost effective in the world.
Key Features:
* All models with Dual combustion chamber.
* Stainless Steel chimney/stack, long lifetime.
* High temperature, long lifetime of incinerator.
* Free or minimum installation on site.
* High burn rate, from 10kgs to 600kgs per hour, up to 10ton per day.
* PLC Control Plane for Intelligent operation.
* New Design for pet animal cremation business.
* One year warranty on incinerator and parts in stock.

It features unique and advanced merits with compact size, high burning effect,
reasonable burning technology, high degree of non-harm etc.It is an ideal
choice for waste treatment of hospitals, hotels and various areas.

Features:

(1)   Gasifiedpyrolysis incineration is used for burning many kinds of waste.
(2)   Waste can be burned once everyday by gasified incineration.
(3)   Gasified incineration, mixed incineration and burnout treatment ensures low emission standard of dust,dioxin etc.
(4)   Totally enclosed operation is suitable for treating infectious waste to avoid secondary pollution.

(5)   Compact structure and small land occupation.
WWW.HICLOVER.COMWaste Incinerators Auto Roll Air Filters
Nanjing Clover Medical Technology Co.,Ltd.

Tel:  +86-25-8461 0201

Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: [email protected]
Email: [email protected]
Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate (Average) 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity(Average) 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
1st. Chamber Temperature 800–1000 800–1000 800–1000 800–1000 800–1000
2nd. Chamber Temperature 1000-1200 1000-1200 1000-1200 1000-1200 1000-1200
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

PRIMARY CHAMBER
Heavy-duty steel casing
High quality refractory lining and insulation Large full size top load counterbalanced door
1 x oil/gas fired ignition burners operated on/off

SECONDARY CHAMBER
Heavy-duty steel casing
High quality refractory lining and insulation 2 second gas residence time
1 x oil/gas fired ignition burners operated on/off

CHIMNEY
Heavy-duty stainless steel casing

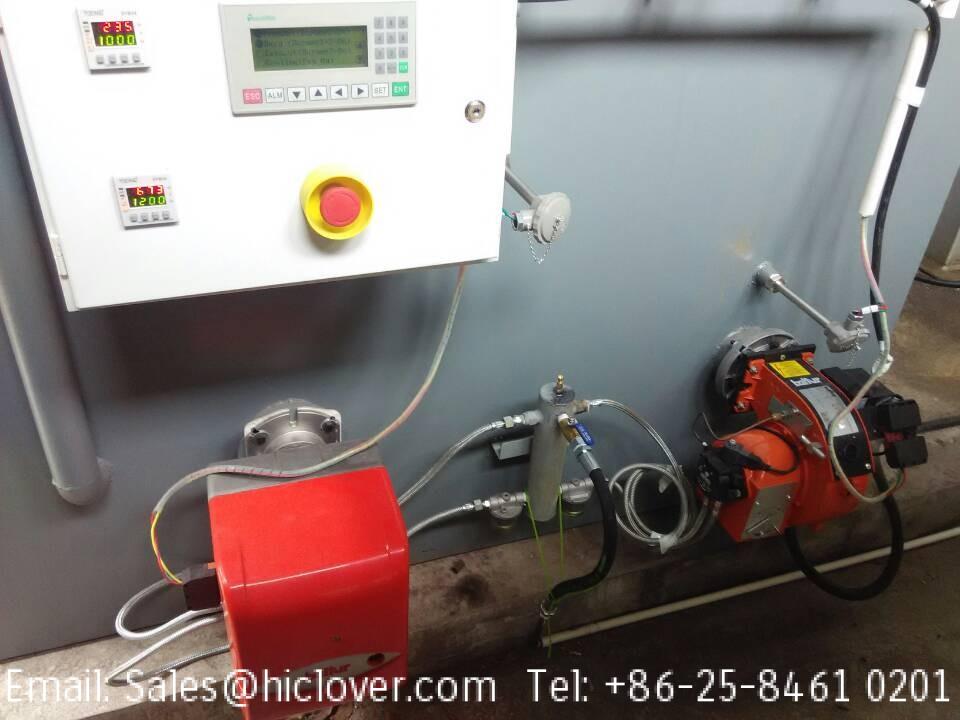

CONTROL PANEL
Control of primary and secondary burners Temperature Monitoring with 4 digit display

Thermostat control device for burner (fuel saver) Timer
control 0- 12 hours
Integral fan timer control

ANCILLARIES
Operating and maintenance manuals Spares list

KEY FEATURES

•Afterburner Preheat

•Incineration temperatures in excess of 1300°C

•5mm steel casing and fully insulate

•Dense refractory concrete lining rated to 1600°C


An approved plant must have four distinct sections that demonstrate three principles of
Turbulence, Residence Time and Temperature are inbuilt in the plant design .

The regulated sections may include but not limited to:

Overall plant layout. Feed chamber/ charging
Primary Combustion Chamber. Secondary Combustion Chamber. Particulate Scrubbers
Acid Gas Scrubbers The stack/ chimney.
Controlled hygienic, mechanical or automatic feeding methods have to be used which
will not influence the air temperature in the primary and secondary chambers of the incinerator negatively.

No waste is to be fed into the incinerator:

1. Until the minimum temperatures have been reached.
2. If the minimum combustion temperatures are not maintained.
3. Whenever the previous charge has not been completely combusted in the case of batch feeding.
4. Until such time as the addition of more waste will not cause the design parameters of the incinerator to be exceeded.

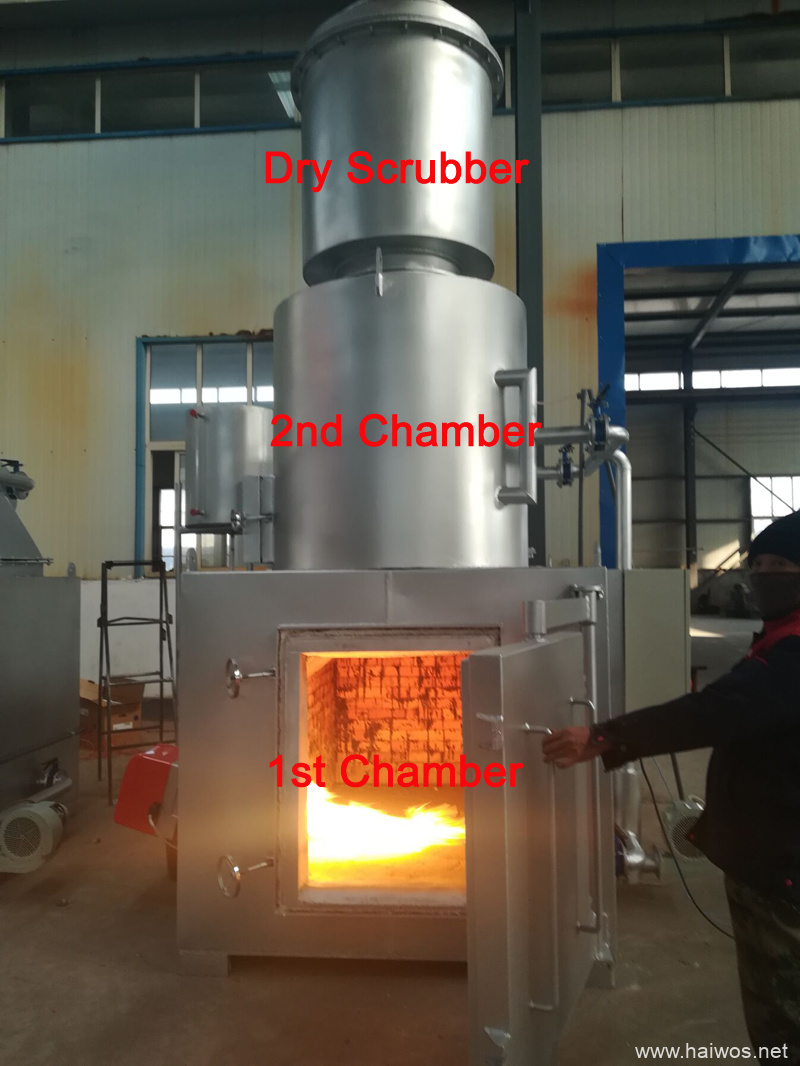

The primary combustion chamber must:

1. Be accepted as the primary combustion zone.
2. Be equipped with a burner/s burning gas/fuel or low sulphur liquid fuels.

Other combustion methods will be judged on merits.

3. Ensure primary air supply is controlled efficiently

4. Ensure minimum exit temperature is not less than 850oC
The secondary combustion chamber must:

1. Be accepted as secondary combustion zone.
2. Be fitted with secondary burner/s burning gas or low sulphur liquid fuel or any suitable fuel.

3. Ensure secondary air supply is controlled efficiently.
4. Ensure flame contact with all gases is achieved.
5. Ensure residence time is not less than two (2) seconds.
6. Ensure the gas temperature as measured against the inside wall in the secondary

chamber & not in the flame zone, is not less than
1100oC.
7. Ensure the oxygen content of the emitted gases is not less than 11%.
8. Ensure both primary and the combustion temperatures are maintained
until all waste has been completely combusted
A mechanical particulate collector must be incorporated after secondary combustion
chamber for removal of particulate pollutants entrained in the flue gas stream.
The particulate collectors may include any of the following or
a combination thereof:
Cyclone separator Electrostatic precipitators Fabric filters


Medical Incinerator 10kg/Hour


Product Description

Technology Respond(FAQ)

Q: What’s kind of waste can use within this equipment?  A: This equipment to medical waste, pet animal, Municipal waste, live waste. Prohibit any explosive and radiation material, liquid gas and waste waste.

Q: Incinerator Smoke Standard  A: China Government Standard: No. GB18484-2001.

Q: Remedy capacity  A: Typical Capacity calculated by medical waste(lower calorific power (L. C. P): 3.0TH Kcal/Kg a hour), not indicate any waste material. The animal/pet combustion rate around 2/3 of ordinary power.

Clover incinerator use time per day up to 24 hours. Between each feed/combustion time, you will find approximately 0.5-1 hours cooling time plus time to get feeding squander. Actual combustion time per day is around 16 hours. The life of incinerator involving 5-10 year according to use.

Generally, we proposition small lab, small clinic use capacity under 20 kgs per hour. When incinerator use in hospital, then please compute the waste output around 2kgs per individuals per day. If there are 200 sickbed in the hospital, then that's imply you need 1 incinerator capacity around 400kgs per day, change to power per hour is approximately 30-40 kgs per hour. According the performance time per day, waste material, funding, development, etc, you can use capacity from 30-50 kgs each hour incinerator.  *The best way to compute Animal Cremation Burn Rate: 2/3 of the medical waste.

Q: Assembly and Testing  A: We provide all documents and incinerators simple to installation and operation. Client can send individuals come to our factory to find out operation and installation. Small scale medical waste incinerator, syc-30 incinerator, waste incinerator maker China, Generally, We do not send engineer to local website if not ask. The shipment cost is extra according to order.

Q: Combustion Temperature  A: The very first combustion chamber: 800-1000 centi level.  The second combustion chamber: 1000-1200 centi level.  PLC mode according to model and order.

Q: Operation and maintenance costs  A: Operation cost according to fuel consumption rate and power/staff, etc.

Annual approximately $500-$1000USD per year maintenance according version, use situation.

One individual can service 02 device incinerators. The team should have basic electrician understanding to operate/inspect/maintaince incinerator/burner/blower according to performance user guider, and know risk of medical waste to safeguard worker self with essential protection element.

Q: The Residency time in secondary combustion chamber
A: 02 sec.

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

medical waste monitoring



Medical waste is positioning an expanding problem all over the globe, threatening the wellness of team, clients, disposal employees and also any individual else coming right into call with the commonly harmful products disposed of by medical facilities and also other healthcare sites. Healthcare facility waste varies from website to website and also the greatest obstacle is to dispose of this wide range of waste streams. Destroying dangerous waste at source is by much the most reliable as well as effective means of managing waste that could possibly spread out conditions or viruses.

incinerators industrialHealth Clinics and Health center can now handle their own waste streams using one of our specialist medical incinerators. Destroying hazardous waste at source is by far the most effective and efficient way of handling waste that could potentially spread diseases or viruses.



Adjumani Hospital incinerator blows up


ADJUMANI.

For the previous four months, support staff at the hospital have been dumping medical waste inside the enclosure of their incinerator rather than burning it.

The hospital administrator, Mr Michael Ojja, told Daily Monitor on Wednesday that the incinerator broke down due to continuous burning of collected waste from the hospital.

“The waste has increased as a result of the overwhelming number of admissions and people going to the outpatient department. But we must find solutions to protect the staff and surroundings,” Ojja said.

The hospital medical superintendent, Dr Dominic Drametu, said they had asked the government for construction of a new incinerator.

He said the incinerator was too small to dispose of their hospital’s voluminous medical waste.

Patients admitted to the general ward near the incinerator expressed fear of infections arising from poor disposal of hazardous medical waste.

As stated by the 2013-2014 annual health industry performance report, Adjumani Hospital registers 11,731 in-patients, 83,953 outpatients and 1,695 deliveries.
