Incinerators differ from the simpler methods of burning


Incinerators differ from the simpler methods of open burning since the owner has a greater level of control over the burning process. The resulting higher temperatures, more holding times and greater turbulence lead to more complete combustion of the waste. Although a larger variety of wastes could be destroyed using high temperature single or dual-chambered incinerators, determined attempts should nevertheless be taken to decrease the quantity and type of waste generated and to implement other modifications which would result in reductions in air emissions. Refer to section 3 for additional information appropriate waste management practices and a list of what waste can and cannot be incinerated.

The incinerator manufacturer’s operating instructions should be followed in any way times to guarantee designed temperature, holding time and turbulence requirements are attained and to avoid harm to the facility. When operating during winter months, additional care must be taken because chilly air introduced into the primary and secondary chambers can make it hard for ordinary operating temperatures to be attained. Operators must be properly trained and qualified to operate the equipment under both normal and emergency conditions. Owners are strongly encouraged to consult with manufacturers or other qualified persons with expertise before buying an incinerator. Additional advice on the selection of incinerator technology and their operational requirements can be obtained by referring to Environment Canada’s Technical Document for Batch Waste Incineration.

The setup and operation of monitoring and control systems is essential for the proper and safe operation of any incinerator.  The design, installation, certification and operation of continuous emissions monitoring systems (CEMS) must comply with the principles explained in Environment Canada’s Protocols and Performance Specifications for Continuous Monitoring of Gaseous Emissions  from Thermal Power Generation. For incinerators operating in Nunavut, crucial operational parameters have to be monitored in any way times using on-line tools capable of measuring the combustion process and stack emissions caliber. These tools should be outfitted with visible and audible alarms and be on-line whenever the incinerator is in operation, including’startup’ and’cool down’ phases. Table 3 lists the tracking and control system requirements.


Waste Incinerator


Basic Info.

Model NO.:waste incineration furnace
Pullution Sources:Solid Waste Processing
Processing Methods:Combustion
Export Markets:Global

Product Description

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

Medical Incinerator Main Combustion Price


Product Description

Incinerator is a incineration gear, direct fire waste by gasoline fuel or oi fuel. As distinct circumscription, incinerator could be named many words as under:

Therapy ability: Small scale incinerator, large scale incinerator and incineration pant.  All around the planet, in many countries, people anti incinerator because the incinerator will create a large Dioxin from the smoke. Dioxins break down very slowly and previous releases of dioxins from the man-made and natural resources still exist from the environment. Anyhow, we have to remind that, this is large scale incineration pant, normally more than 30 ton per day. This is a societal problem, to examine and suggest ways in various angles from the general public, government, economic development, environmental protection, technology advancement, etc.

So, why we use incinerator?  To begin with, for your medical waste from hospital, the pyrolytic incinerators is best treatment up to now. Pyrolytic technology can kill the virus, pollution management.  Second, for individual body, pet animal, in many countries and areas, we want to cremation them. This is the service in the process of society development, and ceremonies to commemorate the disappearance of existence.

As above two rationale although not only above, we nevertheless utilize incinerators.

How you are able to find reasonable incinerator for your neighborhood website?  Incinerator is not a cheap equipment, normally the small scale model's cost around $5, 000USD per unit and large scale model's cost more than $50, 000USD per unit. So, before buy one unit incinerator, you need to make clear following things: A, burn out what? Incinerator is a incineration gear, function is fire waste. So what kind of waste you would like to cure?  B, small or large? This based on the waste output daily or the waste quantity per feed time, like animal dimensions.  C, fuel? Incinerator use gas or oil fuel, normally, gas fuel is cheaper than oil and the smoke cleaner than petroleum fuel model. But some neighborhood website don't have gasoline distribution system.  Along with other tech products, such as electricity (220V, 380V), waste feed doorway type, incinerator construction, etc.

Once you describe these, it is possible to go to find a local or international producers, asking prices, technical specifications and ultimately buying the ideal products.

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

animal incinerator


Logic Programmed Control of 2 Burners

Range Of Pre-Set Burn Times

Fuel Saving Burner Efficiency Control Program with Constantly Running Fans

Temperature Monitoring With Separate Displays for Primary/ Secondary Chambers

Auto Control

Manual Control

Timer Control 0-24 Hours

Integral Fun Timer Control





Operating Features



Time to Temperature: 35 Minutes

Fuel Consumption: Gas or 8 Liters per Hour (Diesel) Or Less

Burning Capacity about 30-40Kg/Hr

Weatherproof (Ip65) Control Panel with PLC Showing Operation & Temperatures

Recommended Loading Being By Regular ‘Top Ups’ For Efficient Combustion

Primary Chamber Burners Automatically Switched Off At 900C for Fuel Efficiency

Dry Ash Waste Can Be Removed By Vacuum Unit Is Required

Electricity Supply: 230V, 50H, 10amp, Single Phase

Machine Shipped In Two Section

Chimney Mounted On Fabricated Flanges


Oil/Gas Fired Medical Waste Incinerators

Oil Gas Fired Medical Waste IncineratorsNanjing Clover Medical Technology Co., Ltd. is a leading waste incinerator manufacturer in China. We are local  manufacturer and one of the largest exporter of China. Pyrolytic incinerator equipment technical is main waste treatment all of the world, for Medical waste, Pet animal cremation and other Solid waste. The capacity from 10kgs/Hr. to 500kgs/Hr., up to 6ton per day.

hospital incinerator design

INCINERATEUR DE DECHETS HOSPITALIER hospital incinerator design

SPECIFICATIONS TECHNIQUES.
Capacité destructive de 55 Kg/h jour de déchets hospitaliers  avec un p?.c. i jusqu’à 3.200 Kcal/Kg
1)Type de déchet

hospitalier
2)Pouvoir calorifique inférieur                                                                        3.200 kcal/kg
3)Humidité                                                                                                          20%
4)Teneur  en cendres et/ou inertes                                                                       8%
5)Capacité destructive nominale                                                                         55 kg/h
6)Volume chambre de combustion                                                                     1,65 m3
7)Volume chambre postcombustion                                                                   2.1 m3
8)Temps  transit des fumées en post combustion /sec.                                       <2
9)Température minimale  en postcombustion                                                     1.100° C
10)Teneur d’oxygène libre en postcombustion                                                     6%
11)Attribution refuse confectionné en sachets                                                     HDPE
12)Dispositif de chargement?: hydraulique?; capacité de charge                           0.5 m3

13)Combustible prévu                                                                                           Gasoil
14)Br?leur en chambre de combustion                                                                  nbr?: 1
15)Br?leur en chambre de postcombustion                                                           nbr?: 2

CONSTITTUTION DE L’APPAREIL.
1.CHARGEMENT
Système de chargement hydraulique afin de pouvoir charger le four en toute sécurité même durant son  fonctionnement et

aussi assurer la puissance destructive globale de 450 kg/j?
Le système comprend?:
1-1Trémie de chargement de forme parallélépipédique de 0,5 m3 de volume, réalisée en t?le d’acier, bridés sur la paroi

frontale de la chambre de combustion et munie d’un couvercle à charnières  actionné par vérin hydraulique?.
Dimensions?:
oLongueur 1200 mm
oHauteur 700 mm
oLargeur  600
1-2Un poussoir hydraulique  assurera le chargement de la chambre de combustion
1-3 Une  porte de chargement  de la chambre de combustion constituée  d’une  guillotine  à vérin hydraulique  revêtue

de réfractaire
1-4Un central  hydraulique pour piloter tous les vérins de commande, comprenant?: réservoir, pompe, électrovannes et

tuyauteries

2.CHAMBRE DE COMBUSTION PRIMAIRE

2-1- Le bati est une  structure métallique cylindrique revêtue intérieurement  d’une couche d’isolant et d’une

couche de réfractaire.
2-2-Volume intérieur?: 1,65 m3
2-3-Aménagement
?portillon de décharge  des cendres?:  frontal?; monté sur double charnière et revêtu de réfractaire avec hublot

d’inspection
?La connexion à la chambre de chargement est revêtue de réfractaire
?La connexion  de la   chambre de combustion et de la chambre de post combustion est revêtue de réfractaire
?Installation des bruleurs
?Installation  du système  de distribution de l’air comburant
?Installation des  sondes  de mesure de la température
?Le bac de récolte des cendres  est en acier au carbone sur roulettes, équipé de racloir métallique permettant

l’évacuation manuelle des cendres
3.   BRULEUR DE LA CHAMBRE DE COMBUSQTION
Un bruleur de type à une flamme à l’air soufflé, alimenté par gasoil, équipé des dispositifs de sécurité  Puissance

thermique installée 165 KW.
4. AIR COMBURANT
Le système de distribution et dosage de l’air primaire en chambre de combustion comprend?:
?Ventilateur centrifuge
?Canalisations de distribution air
?Systéme de distribution d’air à 2 canaux
?Soupape de régulation de l’air motorisé selon les phases de cycle de fonctionnement et de la température

5. CHAMBRE DE POST COMBUSTION
5-1- Chambre de post combustion est installée au dessus du foyer  de combustion , elle  est constituée d’un

cylindre  métallique  revêtu intérieurement d’une couche d’ isolant et d’une couche de matériaux réfractaires.
5-2- Volume intérieur?: 2,1 m3
Est dimensionnée pour pouvoir  garantir  un temps de fumée de 2 secondes à 1100°C avec un pourcentage d’oxygène libre

d’au moins 6 %.
5-3 -Accessoires
?Trappe de visite boulonnée frontal pour permettre l’inspection périodique
?La liaison à la chambre de combustion est tapissée de réfractaire
?Installation les br?leurs
?Installation des sondes de mesure température
6. PRODUCTION DE L’AIR COMBURANT DE LA CHAMBRE DE POST COMBUSTION
?Ventilateur centrifuge
?Tuyauteries  de distribution d’air
?Série  de vannes de distribution  d’air
?Soupape de régulation de l’air soufflé  asservi par la sonde du débit  d’ oxygène

7. BRULEUR DE LA CHAMBRE DE POST COMBUSTION
Sont prévus 2 br?leurs du type à l’air soufflé au gasoil équipés  des dispositifs de sécurité.
A la mise en route du four les deux  br?leurs sont  allumés pour assurer la température minimale d’au moins 1100°C?;

ils restent en marche successivement  pour maintenir la température constante.
Puissance thermique installée (290 + 350) KW.

8. CHEMINEE D’EVACUATION
Constitué par un conduit métallique vertical de 8 m de long installée au-dessus de la  chambre de PC, diamètre 630 mm

en t?le d’acier au carbone avec garnissage intérieur en réfractaire

9. ARMOIRE ELECTRIQUE DE COMMANDE ET REGULATION
Composée  de?:
?Circuit  380 V- 50 HZ-3 phases
?Voyant sous tension
?Commande d’arrêt  général
?Voyant état des bruleurs
?Affichage des  températures  des deux chambres
?Minuterie des temps des cycles.
?Une variation des vitesses des ventilateurs
?Le tableau et les cablages sont prévus aux règles CEI avec protection IP 55
?Microprocesseur pour le contr?le et la régulation des températures, ainsi que les cycles d’opération
?Cablages réalisés selon les règles CEI.

10. INSTRUMENTATION DE CONTROLE ET DE MESURAGE CONTINU
Les  dispositifs suivants  sont prévus?:
1)Thermocouples pour la mesure de la température  en chambre de combustion? et postcombustion, à la sortie de

l’échangeur dans la section d’entrée du filtre
2)Système de mesure de la concentration d’oxygène dans les fumées humides a la sortie de la chambre de postcombustion

constitué de?:
?Sonde de mesure de l’oxygène à l’oxyde de zirconium
?Pompe à la membrane
?débitmètre

N95 Mask Machine and Disposable Mask Machine and 400mm and 1600mm Melt blown Production Line and ES Fiber Production Line

1. N95 and Disposable Mask Machine



2. 400mm and 1600mm Melt blown Production Line

3. ES Fiber Production Line

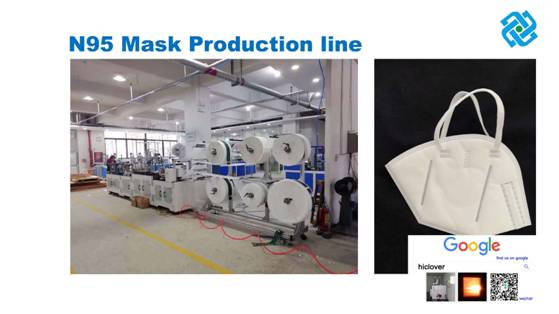

N95 Face Mask Machine Production Line

Melt blown Production Line



A.)Optional Capacity: 1600mm

Efficiency: 95-97%

FOB Term Price: USD per set

Price Valid: 5days.

Ave.60 Days ready for shipping.

In stock Price: USD per set





B.)Optional Capacity: 400mm

Efficiency: 40-50% .

FOB Term Price: USD per set

Price Valid: 5days.

Ave.20 Days ready for shipping.

Payment: TT 70% In advance, TT 30% before leave factory

Shipping: 1*20′ container per set, Ave. 2000Kgs.

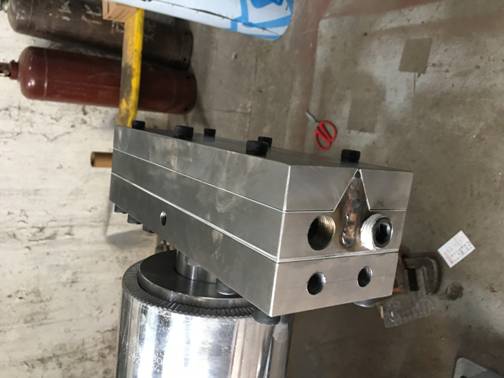

Main Parts: Extruder, mold, winder, oven, ultrasonic

Daily Capacity100-150Kgs/24Hours

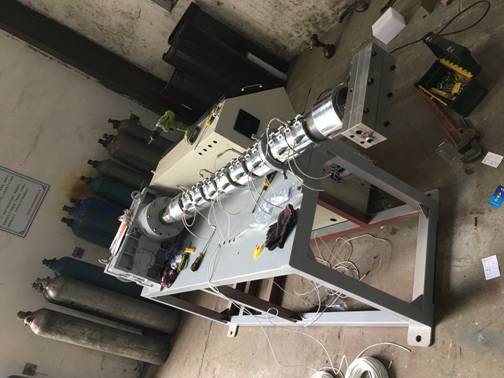

Screw extruder100-150Kgs

Motor power: 15KW frequency conversion speed regulation
Reducer speed ratio: 1:10 or 1:16
Screw length to diameter ratio: 30: 1
Screw diameter: 50mm

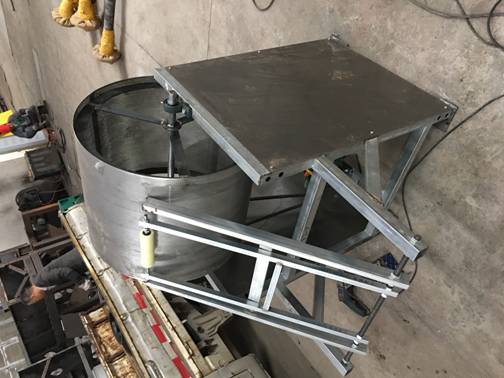

Winding machine diameter:
630mm
Winding machine drive motor power: 0.55kw
Speed ratio of winder drive reducer (if any): 1:71
Air heater power: 15kw
Power of vacuum calciner: 12kw
The size of vacuum calciner: 500 × 300 × 200
Ultrasonic power: 1800, frequency 28kHZ
Ultrasonic sink size: 800 × 300 × 250







HICLOVER – Medical Environmental




Waste Incinerators
Medical Waste Incinerator
Pet Animal Cremation
Solid Waste Incinerator

Tel:  +86-25-8461 0201
Mobile: +86-13813931455(whatsapp/wechat)
Website: www.hiclover.com
Email: sales@hiclover.com
Email: hicloversales@gmail.com
Nanjing Clover Medical Technology Co.,Ltd.



2020-04-20

Waste Incinerators International Market Analytics

Key Word:

small incinerators

medical waste incinerator

pet animal cremation incinerator

incinerator manufacturers





Incinerator is a incineration equipment, direct fire waste by gas fuel or oi fuel. As different circumscription, incinerator can be named many words as below:



Treatment capacity: small scale incinerator, large scale incinerator and incineration pant.

Waste material: Municipal waste incinerator, medical waste incinerator, animal cremation incinerator, human cremators

Incinerator fuel: gas incinerator, oil incinerator

Waste to Energy (WTE): WTE incinerator, non-WTE incinerator

Incinerator Manufacturer: China incinerator manufacturer, UK incinerator manufacturer, USA incinerator manufacturer, India incinerator manufacturer.

Famous Incinerator manufacturer company: Inciner8(UK), Clover Incinerator(China), Pennram (USA) , Haat (India)

Burning Rate: 5kgs/hour, 10 kgs/hour, 15 kgs/hour, 20 kgs/hour, 30 kgs/hour, 50 kgs/hour, 100 kgs/hour, 150 kgs/hour, 300 kgs/hour, 500 kgs/hour



Pyrolytic incineration technical is traditional waste treatment way for many years. All over the world, in many countries, people anti incinerator because the incinerator will produce a large Dioxin in the smoke. “Dioxins” refers to a group of toxic chemical compounds that share certain chemical structures and biological characteristics.  Dioxins can be released into the environment through forest fires, backyard burning of trash, certain industrial activities, and residue from past commercial burning of waste.  Dioxins break down very slowly and past releases of dioxins from both man-made and natural sources still exist in the environment. Anyhow, we have to remind that, this is large scale incineration pant, generally more than 30 ton per day. This is a social problem, to analyze and suggest ways in different angles from the public, government, economic development, environmental protection, technology development, etc.



So, why we still use incinerator?

First, for the medical waste from hospital, the pyrolytic incinerators is best treatment up to now. Pyrolytic technology can kill the virus, pollution control.

Second, for human body, pet animal, in many countries and regions, we desire to cremation them. This is the ceremony in the process of society development, and ceremonies to commemorate the disappearance of life.



As above two reason but not only above, we still use incinerators.



How you can find reasonable incinerator for your local site?

Incinerator is not a cheap equipment, generally the small scale model’s price around $5,000usd per unit and large scale model’s price more than $50,000usd per unit. So, before purchase one unit incinerator, you have to make clear following items:

A, burn what? Incinerator is a incineration equipment, function is fire waste. So what kind of waste you want to treatment?

B, small or large? This according to the waste output every day or the waste volume per feed time, like animal size.

C, fuel? Incinerator use oil or gas fuel, generally, gas fuel is cheaper than oil and the smoke cleaner than oil fuel model. But some local site don’t have gas supply system.

And other technology items, like power(220v, 380v), waste feed door type, incinerator structure, etc.



After you clarify these, you can go to find a local or international manufacturers, asking prices, technical specifications and ultimately purchasing the right products.
