INCINERATEUR COMBUSTION DESTRUCTION OF MEDICAL WASTE PYROLYTIC AND LABORATORY,incinerator medical waste manufacturer

Gasified incineration for burning medical wastes incinerator

Posted on by

Gasified incineration for burning medical wastes.

Fuel type: Natural Gas
Burning Capability:
–     30-50 kg/time
–     Daily 3-6 times

Incinerator size:  max 2000x1200x3200 mm
Burning room volume:
–     Gasification room max 0.7 m3,
–     Secondary burning room max 0.5 m3，

Size of the filling entrance: max 650×850 mm
Air blower: max 0,5 kW
Combustion-support combustion machines:
–     Power max 0,2 kW
INCINERATOR (WASTE INCINERATOR)
Designed to burn disposables that can and should be destroyed on-site. Theses wastes include infectious and contaminated “red bag.” Surgical dressings, plastic test devices and other wastes
Fast, complete, efficient waste disposal
Dual chamber combustion, Chambers insulated and lined with high temperature refractory. Programmable digital temperature controls, temperature indicators and charge recorder. Modulating control for fuel and air lowers fuel consumption.
Minimum installation and start up time
Aluminized steel jacket lined with refractory and firebrick. Monitors recorders and other accessory equipment should be available.
Charging system:
•    Vertical charge door on primary chamber.
•    Pneumatic or hydraulic ram charging system.
•    Auto shut down of the door after charging.
•    Primary and secondary chamber temperature displayed and recorded (optional)
Charging rate:
•    Up to 100kgs per hour of waste or red bag waste rated at 2200 BTU’s per kg.
Fuel:-     Natural Gas
Capacity (Cubic Mtr):    1.65M3 or more
Ave Capacity:    100kg per hour
Secondary Chamber Capacity (CubicMtr) :3.88 or more
Length (mm):    1880 or better
Width (mm):    1280 or better
Height Incl. Flue (mm):    7700 or better
Ash  Door Opening (mm):    475×900 or better
Min. Operating temperature:    90 degree centigrade
Max, Operating Temperature:    1350 degree centigrade
Residency time in Second Chamber:    2 sec
Temperature Monitoring: Both for primary and secondary chambers.
Loading SystemManual/semi-automatic
Waste destruction efficiency:> 90% by weight
Filter: Ceramic or other equivalent filters in order to reduce the induction of hazardous air pollutants, particulates, co,dioxin/furane into the atmosphere.
De ashing system: Manual/semi-automatic.
The System must be quoted complete with:-
•    Plumbing
•    Electrical panels
•    Civil works
•    Waste collection Trolleys
Re-burning machine: Power max 0,2 kW Voltage: 220V / 380V
Weight: max 5000 kg

Municipal Waste Incinerator

Posted on by


Basic Info.

Pullution Sources:Solid Waste Processing
Processing Methods:Combustion
Export Markets:Global

Additional Info.

Trademark:clover

Product Description

Application Scope:  1.

Company License No.,: 320105000138343  Taxation Certificate No.: 320105571573734  Export Business Certificate No.: 3201571573734

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

Nanjing Clover Medical Technology Co., Ltd.. Is a top waste incinerator manufacturer in China. We’re local manufacturer and one of the largest exporter of China. Pyrolytic incinerator gear technical is main waste treatment all of the planet, for Medical Waste, what is a biological incinerator for pets, what is double chamber incierator, what is the average cost to get a medical incinerator, what is the cost of a pet cremation incinerator, Animal Incineration, Pet cremation and other Solid wste. The potential from 10kgs/Hr. To 500kgs/Hr. Up to 6ton per day. Currently , we supply different show for local customer requirements and layout upgraded incinerator with our top technology. The upgraded design feature of our assortment of incinerators make them one of the most cost effective in the world.

Incinerator Animal Hospital

Posted on by


Basic Info.

Model NO.:incinerator burners
Export Markets:Global

Product Description

Incinerator is a incineration gear, direct fire squander by gasoline fuel or oi fuel. As distinct circumscription, incinerator could be named many words as under:

Therapy capacity: Small scale incinerator, big scale incinerator and incineration pant.

Waste material: Municipal waste incinerator, medical waste incinerator, animal cremation incinerator, individual cremators

Incinerator fuel: Gas incinerator, petroleum incinerator

Waste to Energy (WTE): WTE incinerator, non-WTE incinerator

Incinerator Manufacturer: China incinerator manufacturer, UK incinerator manufacturer, USA incinerator manufacturer, India incinerator manufacturer.

Famous Incinerator manufacturer firm: Inciner8(UK), Clover Incinerator(China), Pennram (USA), Haat (India)

Burning Speed: 5kgs/hour, 10 kgs/hour, 15 kgs/hour, 20 kgs/hour, 30 kgs/hour, 50 kgs/hour, 100 kgs/hour, 150 kgs/hour, 300 kgs/hour, 500 kgs/hour

A Model creature crematory burning rate from 20-400kgs a hour. Heavy duty combustion room and incinerator smoke filter, incinerator provider in saudi arabia, incinerator supply, incinerator fever, incinerator usa manufacturer pharmaceutical, match for big animal cremation.  In post combustion chamber. Practically smoke and smell free.

Smoke Filter Chamber with filter brick, Virtually smoke and smell free after burningoff.

Italy original oil or gas burner, quality dependable. It suit for diesel oil, natural gas, LPG gas.

User guider, full installation and operation document for customer.

Items/Model A1500 A2400 A4000 A5500
Burning Rate *animal 90 kgs/Hr. 150 kgs/Hr. 200 kgs/Hr. 400 kgs/Hr.
Feed Capacity *animal 120 kgs 200 kgs 300 kgs 500 kgs
Equipment Weight 7000 kgs 8300 kgs 13000 kgs 16500 kgs
Primary Chamber (Liters) 1500 2400 4000 5500
Secondary Chamber (Liters) 500 1200 1500 1500
External Dimensions (cm) 240x170x380 260x220x420 320x220x460 360 x 220 x 475
Internal Dimensions (cm) 150x100x96 220x110x100 257x147x108 300 x 147 x 125
Oil Tank(Liters) 500 500 500 500
Door Opening (cm) 59 x 81 90 x 110 108 x 128 108 x 128
Chimney (M) 10 10 14 14
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Secondary Chamber  YES YES YES YES
Mix-Combustion Chamber YES YES YES YES
Smoke Filter Chamber YES YES YES YES
Combustion Fuel Oil/Gas Oil/Gas Oil/Gas Oil/Gas
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Temperature Monitoring YES YES YES YES

No direct incinerator cash bonanza for Runcorn residents along lines of shale gas fund

Posted on by

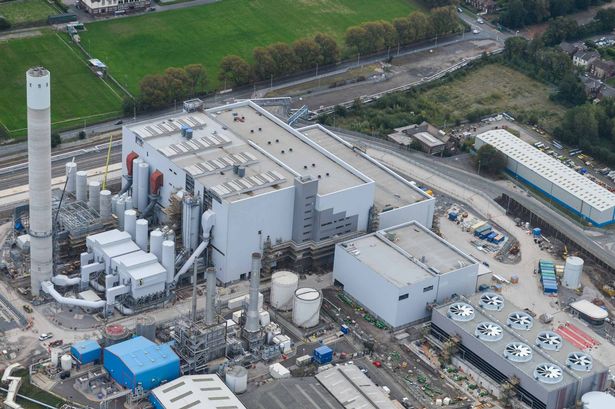

An aerial view of the energy-from-waste plant in Runcorn.

A CHEMICAL firm has said it will not be dishing out an energy cash bonanza to Runcorn residents after the company pledged to share 6% of its shale gas revenues with households in ‘fracking’ zones.

Ineos said an environmental fund is already in place whereby Halton Borough Council receives 60p of public project cash per ton of fuel burned in the incinerator – something that could be worth about £500,000 a year.

A company spokesman commented after the Weekly News asked it whether the inhabitants of Weston Point and further afield could expect a windfall funded by the energy-from-waste plant.

Last week Ineos announced a ‘£2.5bn shale gas giveaway’ to residents living in 100 sqkm areas where the company fracks.

Jim Ratcliffe, Ineos chairman, said the payments would give neighbourhoods ‘a real stake’ in the project.

Backers of fracking say the process could drive down energy prices, boost the economy and slash reliance on supplies from unstable regions of the worlds.

Critics say it will damage the environment, cause earthquakes, accelerate climate change and benefit a tiny few.

Incinerator waste has been promoted as a renewable source of power and a means to secure the future of the Runcorn chemical works while slashing the amount of waste going to landfill, but it too has sparked controversy from those who claim the Weston Point plant is too big, causes too much pollution, noise and bad smells.

An Ineos spokesman said: “There is already an environmental fund in place for the Runcorn EfW facility, which was agreed as part of the planning process.

“Ineos’s approach on shale gas applies to individuals and communities that would be situated directly above horizontal gas wells.

“It would not be appropriate to apply this to all projects, including Ineos’s share of the Runcorn EfW facility.”

medical was incinerators Department of Health

Posted on by

hospital waste management team at a tertiary care hospital ,1250 beeded hsopital .

our daily waste generated from all sources is 0.55kg/bed/day =685kg/day

we need an incinerator of 150kg/hour loading capacity.

plz reply with , buying,installation, running and maintenance cost.incinerators, specifically, medical was incinerators
Department of Health has floated a tender for Incinerator X 1 Unit and the closing date is on 16th June 2011. The specification of the Incinerator is as below:

Specification of Incinerator

1.    Should have preparation, Incineration, Scrubber steps to burn waste completely and waste gas should be non-polluted

2.    Heavy duty steel, heat resistant coating, stainless steel lid, painted tubular steel frame, 2-blowers, axial vane, suitable drum (S/S, thick) for the incinerator must be provided.

3.    Approx. 20 to 25 Kg per batch and the time required for 1 batch not more than 1 hour on average.

4.    Ash should be only 5% of the waste material

5.    Weight of Incinerator – 50-60 Kg

6.    220V AC

7.    Surgical , medical & laboratory waste

8.    B X L X H = 4 feet X 8 feet X 6 feet

9.    1 year warranty

10. ISO Certified

11. Mobile Incinerator

12.  Electric

Livestock Incinerator

Posted on by


Basic Info.

Export Markets:Global

Additional Info.

Trademark:CLOVER
Packing:Wooden Carton
Origin:China Nanjing City
Production Capacity:1000 Sets Per Year

Product Description

Technology Respond(FAQ)

Q: What’s kind of waste can use in this gear?  A: This gear for medical waste, pet animal, Municipal waste, reside waste. Prohibit any volatile and radiation substance, liquid waste and gas waste.

Q: Incinerator Smoke Standard  A: China Government Standard: No. GB18484-2001.

Q: Remedy capacity  A: Average Capacity calculated by medical waste(lower calorific power (L. C. P): 3.0TH Kcal/Kg per hour), not mean any waste material. The animal/pet combustion rate around 2/3 of ordinary power.

Clover incinerator use time per day up to 24 hours. Between each feed/combustion time, there are approximately 0.5-1 hours cooling time and time to get feeding squander. Actual combustion time per day is about 16 hours. The life of incinerator between 5-10 year based on use.

Generally, we proposal little lab, little clinic use capacity under 20 kgs per hour. When incinerator use in hospital, then please compute the waste output around 2kgs per people per day. If there are 200 sickbed at the clinic, that's mean you need one waste incineration compaines in china, waste incineration equipment, waste incineration factory data, waste incineration in ukraine, waste incineration plant ipswich tasks, incinerator capacity around 400kgs per day, change to power per hour is about 30-40 kgs per hour. According the operation time per day, waste material, budget, growth, etc, you can use capacity from 30-50 kgs per hour incinerator.  *How to compute Animal Cremation Burn Rate: 2/3 of the medical waste.

Q: Meeting and Testing  A: We supply all files and incinerators easy to setup and operation. Customer can send people visit our factory to find out operation and installation. Generally, we don’t send engineer to local website or even ask. The dispatch price is additional based on order.  The next combustion chamber: 1000-1200 centi level.

Q: Incinerator Control Mode  A: Default Control mode is common control instance. PLC mode based on order and model.

Q: Operation and maintenance costs  A: Operation price based on fuel consumption rate and power/staff, etc.

Annual around $500-$1000USD per year maintenance according model, use situation.

One individual can service 02 device incinerators. The staff should have fundamental electrician understanding to operate/inspect/maintaince incinerator/burner/blower based on operation user guider, and know risk of medical waste to protect worker self with essential protection component.

Q: The Residency time in secondary combustion chamber  A: 02 sec.

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
1st. Chamber Temperature 800degree–1000degree 800degree–1000degree 800degree–1000degree 800degree–1000degree 800degree–1000degree
2nd. Chamber Temperature 800degree–1000degree 800degree–1000degree 800degree–1000degree 800degree–1000degree 800degree–1000degree
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

medical waste PYROLYTIC INCINERATOR

Posted on by

TECHNICAL SPECIFICATIONS: PYROLYTIC INCINERATOR

Parameter Compliance
Type of Waste To treat medical waste, categories A,B,C,D,E
Type of Incinerator Pyrolytic
Nominal Burn rate 50 t0 60 kg/ hr at 3500Kcal/Kg
Loading Manual, Batch Load
De Ashing Automatic or Manual batch de ashing
The incinerator must avoid the release of black smoke and fine dust during the loading
Primary chamber capacity 2-3 m³
The insulation   of the combustion chamber should be composed   of refractory bricks, having a higher content of aluminium and insulates,
The plate of combustion in carborundum avoiding the fixing of glass and slags
Hours of operation /Day >10 hrs
Max Operating Temperatures 1400 °C
Normal Operating Temperatures(Primary) >850 °C
Operating Temperature(Secondary) >1100 °C
It should have digital temperatures regulator( Temperatures regulator in digital watch)
Carbon content of ashes <2%
The installation should be completely free from visible smoke as well as offensive odours
Residence time in second chamber 2 second minimum
The internal diameter of the Chimney :Ø 400
Height of stack >8m
Burner operation Automatic On/Off
Fuel Diesel
Fuel consumption at raed capacity >7kg waste /ltr
Electricity consumption <2kW at rated capacity
Operating Voltage 220 – 240V AC 50Hz
Spare parts Supply for 1 year quoted as option
Consumables Supply for 1 year of operation to be mentioned as option
Warranty Parts and service support: 1 year minimum post comissioning
Service support <72 hours
Emission standard Compliance BS3316 or equivqlent standard
Process filtering system Scruber to be mentioned as option
CE Manufacturing Compliance BS EN 746-2-1997
Design Specification Type A,B,C,D,and E of medical waste
Installation and Comissioning Included in condition of supply
Training in preventive and curative maintenance and use of the incinerator Operator training inclusive in offer
Capacity to treat Plastic Not less than 40% by weight
