The incinerator to be fully assembled wired and logic function tested in the factory, prior to dispatch.

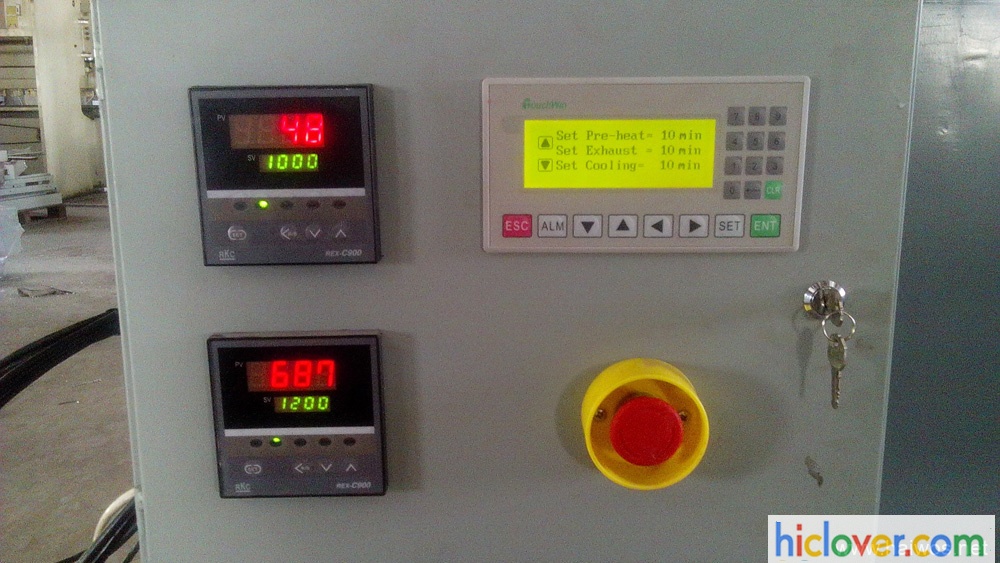

–      One high flue gas temperature indicator/alarm to provide an audio/visual warning in the event of high flue gas

temperatures occurring in two stages:-

First stage audible alarm, second stage incinerator shutdown, with one voltage free contact for connection to a

remote alarm system.

–      Flexible wire control linkages to bring under fire air, overfire air and burner slide plate control to front of

incinerator.

–      One fire protection system, comprising fusible links over burners, deadweight fire valve, electrically

interlocked with incinerator controls.

–      Special feeding door with thermal lock to protect the operator from accident.

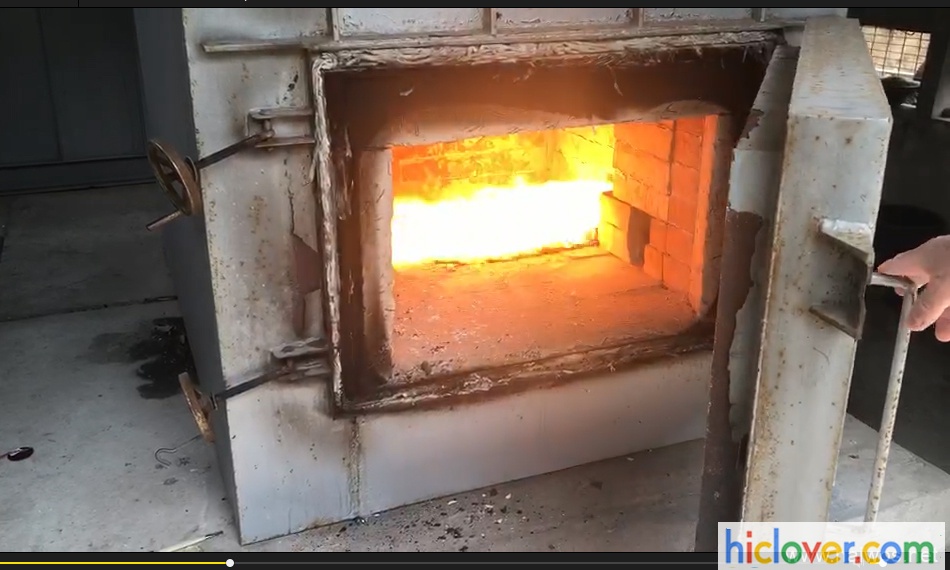

2.2  PRIMARY CHAMBER

1. The chamber shall consists of a welded steel shell of minimum 6mm thickness plate reinforcing strips and

connections for primary air supply, start-up burner, thermal reactor, water injection and all necessary measuring probe

sockets.

1. The entire chamber, including all the connections shall be lined with a composition of castable hot face

refractory suitable for a continuous service temperature of 1500 deg. C. This lining shall be separated from the steel

construction by a second layer of insulation. Heat resistant cast steel plates with many fine holes shall be lied over

the refractory lined floor of the unit with a space between the two.

1. The chamber shall be externally primed and sprayed with a silicone enamel paint.

2.3  THERMAL REACTOR

9. The reactor shall consist of welded cylindrical steel sections of minimum 9.5mm thickness plate.

1. The whole chamber shall internally be constructed with a refractory lining.

1. The chamber shall be provided with connection for the low temperature carbonization gas intake, the flue gas

outlet, the secondary and tertiary air supply, the reactor burner and all the required measuring probes.

1. Externally the reactor shall be primed and sprayed with a silicone enamel paint.

Our normal activities generates 2-5 tons of assorted waste materials per day which range from condemned carcasses, and medical incinerator primary combustion price

other wastes all which need to be incinerated at above 800Centigrade measured flue exhaust gas.To be used by small

hospitals and clinics to safely dispose of infectious and pathological wastes.

Load Capacity in the range of up to 200 kg
– Burning Rate approx. 50kg/Hour –

Incinerators to be very effective, fuel efficient with high / low capacity burn rates
and to be designed to meet the Norms of Pollution Control / DEFRA, etc. Technology:

Temperature Controlled Burner. Heavy-duty casing, to be a quality, rugged, reliable, economical Medical Waste

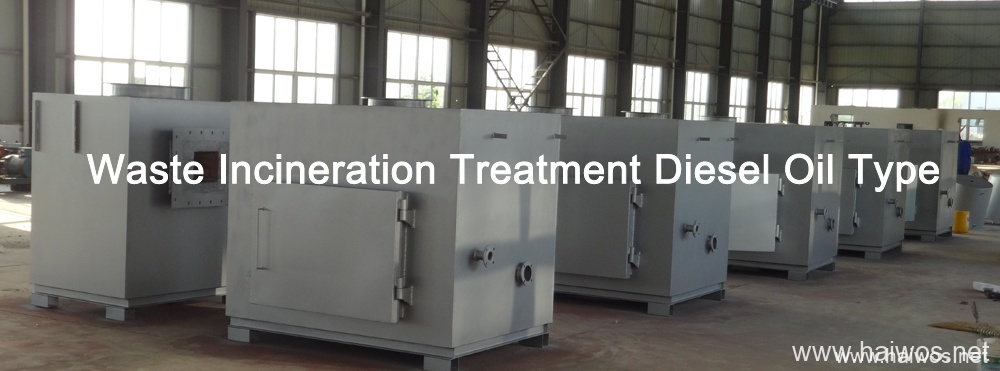

Incinerator with relevant control, easy to operate and self-contained. Type of Fuel: Diesel / Oil or Petrol.
Units to be pre-assembled, pre-piped, pre-wired & tested before Transport / Export.

Within the framework of an environmental and medical equipment & technology consultation and joint purchasing, this

Procurement Bureau invites applicants for pre-qualification in the aim of primarily selecting capable companies to bid

for the above tender.
The supply will comprise the special equipment for effective waste management as mentioned above for a new private

environment contract management company with planned operations 2013 in Indonesia and Thailand, and 2014 in West & East

Malaysia to carry out those professional services in order to comply with the governments safety disposal requirements

for medical and hospital, clinical waste in the region and to meet the higher technical standard in this particular

field.small incinerators with filter (with least minimum pollution) for burning/combusting 5kg/hr, 10kg/hr, 15 kg/hr,

20kg/hr, 25kg/hr to 50kg/hr and 300kg/hr of SOLID ORGANIC DRY AND WET NON-HAZARDUOUS of any kind (including hospital

wastes) per day or per hour. Should it be with no smoke, no fumes, no odour (smell), no dust, no emission of solid

particles and with least minimum pollution (within national and international standards). Must be environmentally

healthy and acceptable with international standards. Should not be with water scrubbers. Ash contents after burning

should be 3-4%.

Capability: 20KG/Hr, Temp Variety: 600 Deg. C– – 1100 Deg. C

Gas Supply: Natural Gas/Diesel

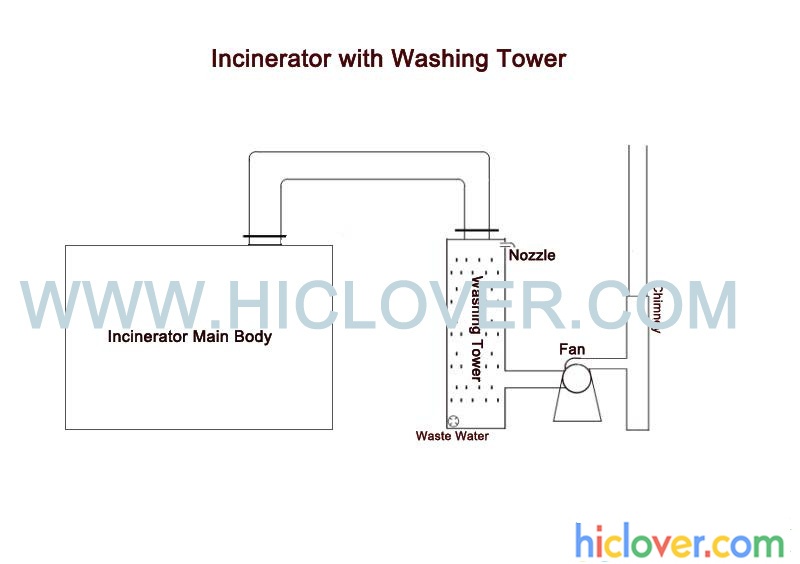

Dual Burning Chamber Complete Scrubbing System (Dual

Resulting Gas Washer), Dual Blower, Chimney Elevation: 8m

Electric Supply: 220/240Volt, Single Phase

1. Kind of waste: Waste
2. Any type of sort of other type:
3. Amount of waste created daily in kg: (50 Lot per day) SOW
4. Duration– – heater will certainly be made use of each day: (Minimum 12 hrs) SOW
5. Approximate moisture material:
6. Regional heater operating in addition to exhaust standards: US-EPA
7. What is the height of the smokeshaft called for: Not recognized
8. Fuel proposed to be utilized: Deiseal Oil
9. Accessibility of power and additionally kind: 220 or 110
10. Information of space easily available: Plenty of room
11. Do you ask for a computerized loading system: [**] Yes [**] No.
12. Do you require a gas rubbing up system: [**] Yes [] No.
13. Exactly exactly how soon do you require the system to be supplied: 30.
14. Any type of sort of other particular demands:.
15. Nature: (Solid/Semi-solid/Liquid)
