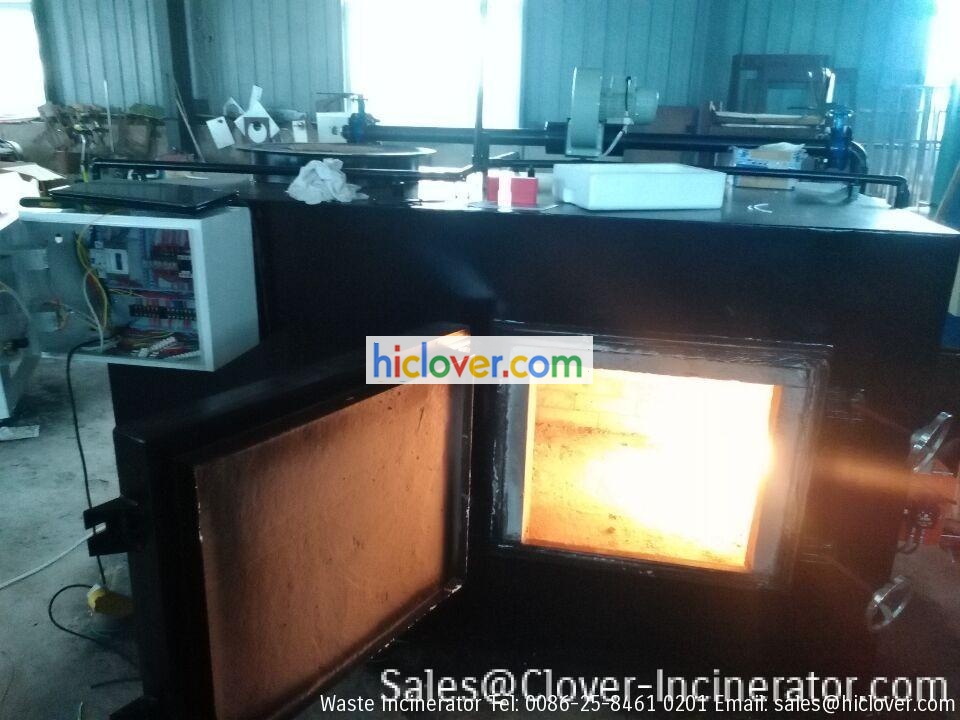

Abandoned Object Incinerator


Basic Info.

Export Markets:Global

Additional Info.

Trademark:clover

Product Description

Incinerator is a incineration gear, direct fire squander by gas fuel or oi gas. As distinct circumscription, incinerator could be termed many words as under:

Therapy capacity: Small scale incinerator, big scale incinerator and incineration pant.  Waste material: Municipal waste incinerator, medical waste incinerator, animal cremation incinerator, individual cremators  Incinerator gas: Gas incinerator, oil incinerator  Waste to Energy (WTE): WTE incinerator, non-WTE incinerator  Incinerator Manufacturer: China incinerator maker, UK incinerator manufacturer, USA incinerator manufacturer, India incinerator manufacturer.  All around the planet, in most countries, individuals anti incinerator since the incinerator will create a sizable Dioxin in the smoke. Dioxins can be published to the little scale incinerator for home, small scale incinerator for houses, small scale incinerator for solid waste, little scale incinerator for solid waste at price of $250000, environment through forest fires, backyard burning of trash, certain industrial activities, and residue from past commercial burning of waste. Dioxins break down very slowly and past releases of dioxins from both natural and man-made resources still exist in the environment. Anyhow, we must remind that, this is big scale incineration pant, generally more than 30 ton per day. This is a social problem, to examine and suggest ways in different angles in the public, government, economic development, environmental protection, technology advancement, etc..

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

China incinerator provider


china incinerator supplier

We provide single combustion chamber, double glazing chambers, three combustion chambers and multi-combustion chambers waste incinerators for laboratory, clinic, hospital, medical center, cleanliness clinical waste destruction with medical disposable, biological waste, medical plastic waste, hazardous waste, red bag waste, needle disposal, gauze and bandages, sealed sharp containers, pathological waste, trace-chemotherapeutic wastes, etc..

Zero Waste dialogue under way downtown

Concerns that an industrial scale garbage incinerator might be built in Duke Point persuaded organizers of an international environmental conference to come to Nanaimo.

The Alternatives to Incinerators Landfills; Zero Waste International Alliance Conference and Dialogue started Thursday at the Coast Bastion Hotel. The annual conference attracts environmentalists from around the world, with an emphasis on science to reduce the carbon footprint of humans on the global environment.

“One of the issues our international committee was very concerned about (is) British Columbia seems to be the battlefield for zero-waste right now,” said Barb Hetherington, conference chairwoman and Gibsons resident.

Zero waste supporters have a global goal to end all disposal of solid waste in landfills or incinerators, through a combination of diversion, through the so-called three Rs — reducing, re-using and recycling items humans has buried or burned for centuries.

Reducing requires a long-term process of public education to change behaviours that led to waste of limited resources and pollution. Recycling is an incremental process that each community takes on.

Nanaimo residents already divert almost 70 per cent of their household waste from the regional landfill in Cedar, through recycling and composting.

But as communities get closer to 90 per cent diversion, it becomes increasingly difficult. Many products, such as running shoes and certain other manmade materials are not easily reused or recycled.

When incineration proponents suggest burning garbage to extract energy, the international Zero Waste community worries about what Hetherington calls “green-washing” of the brand of zero waste.

“B.C. is a very green province. We have an incinerator industry that’s really targeted British Columbia, so selling incineration as zero-waste and this is a Band-aid solution. It is a polluting solution. It has nothing to do with zero waste — it’s a disposal option.”

The three-day conference covers a range of topics around the theme of how to get closer to the zero waste target. Organizers acknowledge getting there won’t be easy, but say it’s achievable.

INCINERATOR DIESEL DRIVEN

INCINERATOR, DIESEL DRIVEN
waste type : HEALTH CARE WASTE
Waste calorific value : 4000KCAL/KG
Moisture Content : 10-25%
Nominal Capacity : 50Kg/Hour batch load
Secondary Chamber : 2 Seconds @ 850degrees C
The primary combustion chamber must ensure minimum exit temperature is not less than 850 degrees C.

INSULATION
Calcium Silicate
Limiting Continuous service limit 1000 degrees C.
Thickness 25mm

THROUGHPUT
50kg/hour at a nominal calorific value of 4,000 kcal/kg and an average bulk density of 120kg/MCubed for general waste and 160kg/MCubed for health care waste.

ENVIRONMENTAL PROTECTION ACT


These are excerpts from the Environmental Protection Act

1.

prescribe that, where discharged to the environment,
(a)    endangers the health, safety or welfare of persons,
(b)    interferes or is very likely to interfere with normal enjoyment of life or property,
(c)    endangers the health of animal life, or
(d)    causes or is very likely to cause damage to vegetation or to property;

“Discharge” contains, but not so as to limit the significance, any pumping, pouring, throwing, dumping, emitting, burning,

spraying, spreading, leaking, spilling, or escaping;

“Environment” signifies the elements of the Earth and contains (a)    air, water and land,
(b)    all layers of the air,
(c)    all organic and inorganic matter and living organisms, and
(d)    the interacting natural systems that include components referred to in paragraphs (a) to (c).

“Inspector” means a person appointed under subsection 3(2) and includes the Chief Environmental Protection Officer.

2.2    The Minister may
(a)    establish, operate and maintain stations to monitor the quality of the surroundings in the Territories;
(b)    conduct research studies, seminars and training programs relating to contaminants and to the
preservation, protection or enhancement of the environment;
(c)    develop, co-ordinate and administer policies, standards, guidelines and codes of practice about the

preservation, protection or enhancement of the environment;
(d)    collect, distribute and publish information relating to contaminants and to the preservation, protection or

enhancement of the surroundings:

3.     (1) The Minister shall appoint a Chief Environmental Protection Officer who shall administer and enforce this Act and

regulations.

(2)    The Chief Environmental Protection Officer may appoint inspectors and shall specify in the consultation the forces

that may be exercised and the duties that may be performed by the contractor under this Act and regulations.

5.     (1) Subject to subsection (3), no individual shall discharge or allow the discharge of a contaminant to the

environment.

(3)    Subsection (1) doesn’t apply where the person who discharged the contaminant or permitted the discharge of the

contaminant determines that
(a)    the discharge is authorized by this Act or the regulations or from an order issued under this Act or regulations;
(b)    that the contaminant was used solely for domestic purposes and has been discharged from inside a dwelling house;
(c)    that the contaminant was discharged by the exhaust of a vehicle;

(d)    the discharge of the contaminant resulted from the burning of leaves, foliage, wood, plants or stubble for domestic or

agricultural functions;
(e)    the discharge of the contaminant caused by burning for land clearing or land grading;
(f)    the discharge of the contaminant resulted by a fire set by a public official for habitat management of silviculture

functions;
(g)    that the contaminant was discharged for the purposes of combating a forest fire;
(h)    that the contaminant is a dirt particle or grit discharged from the course of agriculture or horticulture; or
(I)    that the contaminant is a pesticide classified and classified as “domestic” under the Pest Control Products Regulations

(Canada).

(4)    The exceptions set out in subsection (3) don’t apply where a person discharges a contaminant that the inspector has

reasonable grounds to believe is not ordinarily connected with a discharge from the excepted action.

5.1.     Where a discharge of a contaminant into the environment in contravention of the Act or regulations or the

provisions of a permit or permit issued under this Act or the law occurs or a reasonable likelihood of such a

discharge exists, every individual causing or contributing to the discharge or raising the chance of such a discharge, and

the owner or the individual in charge, control or management of the contaminant until its discharge or likely discharge, shall

instantly:
(a)    subject to some regulations, report that the discharge or likely discharge to the individual or office designated by the

regulations;
(b)    take all reasonable measures consistent with public safety to block the discharge, repair any damage
resulting from the discharge and prevent or remove any danger to life, health, property or the environment that results or may

be reasonably expected to result from the discharge or likely discharge; and
(c)    make a reasonable attempt to notify every member of the public who may be adversely affected by the discharge or

likely discharge.

6.     (1)  Where an inspector believes on reasonable grounds that a discharge of a contaminant in contravention of the Act

or regulations or a provision of a permit or permit issued under this Act or regulations has occurred or will be

happening, the contractor may issue an order requiring any individual causing or contributing to the discharge or the owner or the

individual in charge, control or management of the contaminant to block the discharge from the date named in the purchase. (1)  Notwithstanding section 6, in which a person discharges or allows the discharge of a contaminant to the

surroundings, an inspector may order that person to repair or fix any harm or harm to the environment that leads to

the discharge.

(2) Where a person fails or fails to repair or fix any harm or harm to the environment in accordance with an arrangement

made under subsection (1) or in which immediate remedial steps are expected to protect the environment, the Chief

Environmental Protection Officer may cause to be completed the steps that he or she considers necessary to repair or

remedy an injury or harm to the environment that results from any discharge.

APPENDIX 2 — MODIFIED BURN BARREL DESIGN AND SPECIFICATIONS

A modified burn barrel is typically assembled by a 45 gallon metallic gas or petroleum drum. The modifications result in larger

heat generation and retention, greater mixing of the waste with incoming air and longer holding time inside the barrel.

Collectively, these modifications result in more complete combustion of the waste than does start burning on the floor or

in a pit.


GENERAL SPECS FOR HEATERS



Main as well as extra burners: Different electrically spark-ignited major heating units along with second heating systems with automatic control will certainly be used to accomplish the specified temperature level needs in the additionally added as well as major chambers. The fires of the main and also additional heating units will not strike the burner wall surface surfaces or floor.
The main burning chamber need to:

1. Be accepted as the primary burning zone.
2. Be geared up with a burner/s melting gas/fuel or reduced sulphur fluid gas.

3. Make certain key air supply is controlled efficiently

Make sure minimal leave temperature degree is not a lot less than 850oC

Air supply: Air supply in the secret and likewise 2nd chamber requirement to be managed in between 30% -80% as well as 170%- 120% of stoichiometric quantity specifically. The combustion air will certainly be offered by means of a various forced draft fan after accounting for the air provided via burners.The second combustion chamber have to:

1.

3.

4.

5.
6. Ensure the gas temperature level as assessed against the inside wall surface in the secondary chamber & & & & not in the fire area, is very little less than 1100oC.

7. Make sure the oxygen web content of the released gases is not much less than 11%.
Make specific both main along with the burning temperature levels are maintained till all waste has actually been completely combusted

lnsulation: lnsulation to be utilized for stonework, boosted concrete, or non-combustible item will secure versus damages to the framework from extreme cozy as well as shall be of a density to limit the outside covering to an optimum temperature level of 66 ° C in an ambient temperature of 21 ° C when the heater is running at complete capacity.

Refractory: Refractory shall be #super responsibility # along with heat-resistant to a minimum of 1100 ° C in the vital chamber in addition to 1250 ° C in the secondary chamber. Refractory will also be abrasion immune in the prlmary chamber, built of plastic or castable kind refractory, developed to prevent protruding and additionally damage as a result of warmth tension, efficient in maintaining greater than twice the per hour burning price along with securing against leakage of fluids, as well as likewise with a minimal thickness of 11O mm for wall surfaces and also fire places



Waste Incinerator 500kgs


Product Description

We are one of the largest waste incinerator manufacturer and exporter of China. Pyrolytic incinerator technical is main waste treatment system all over the world, toxic factories in china, toxic waste incineration italy, toxic waste incinerator catalogue, toxic waste incinerator producers, such as Medical Waste, Animal Incineration, Pet cremation and other Solid waste. Presently, we provide small and large scale incinerators as local customer requirements and layout updated incinerator with our top technology.

Essential Features:  * All models with Dual combustion chamber.  *according to sequence * High temperature, long life of incinerator.  * Free or minimum installation on site.  * High speed, from 10kgs to 500kgs per hourto 6ton daily.  * PLC Control Plane. *according to order  New Design for pet animal cremation business.  * One year warranty on incinerator and parts in stock.

Items/Model YD-200 YD-300 YD-500 YD-600
Burning Rate (kgs/Hour) 200 kgs/Hr. 300 kgs/Hr. 500 kgs/Hr. 600 kgs/Hr.
Feed Capacity (kgs) 400 kgs 500 kgs 800 kgs 1100 kgs
Equipment Weight 7600 kgs 8300 kgs 13000 kgs 16500 kgs
Primary Chamber (Liters) 2000 2400 4000 5500
Secondary Chamber (Liters) 500 1200 1500 1500
External Dimensions (cm) 270 x 185 x 380 260x220x420 320x220x460 360 x 220 x 475
Internal Dimensions (cm) 180 x 115 x 96 220x110x100 257x147x108 300 x 147 x 125
Oil Tank(Liters) 300 500 500 500
Door Opening (cm) 59 x 81 90 x 110 108 x 128 108 x 128
Chimney (M) 10 10 14 14
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Secondary Chamber  YES YES YES YES
Mix-Combustion Chamber YES YES YES YES
Smoke Filter Chamber YES YES YES YES
Combustion Fuel Oil/Gas Oil/Gas Oil/Gas Oil/Gas
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Temperature Monitoring YES YES YES YES
