Containerized Mobile Incinerators

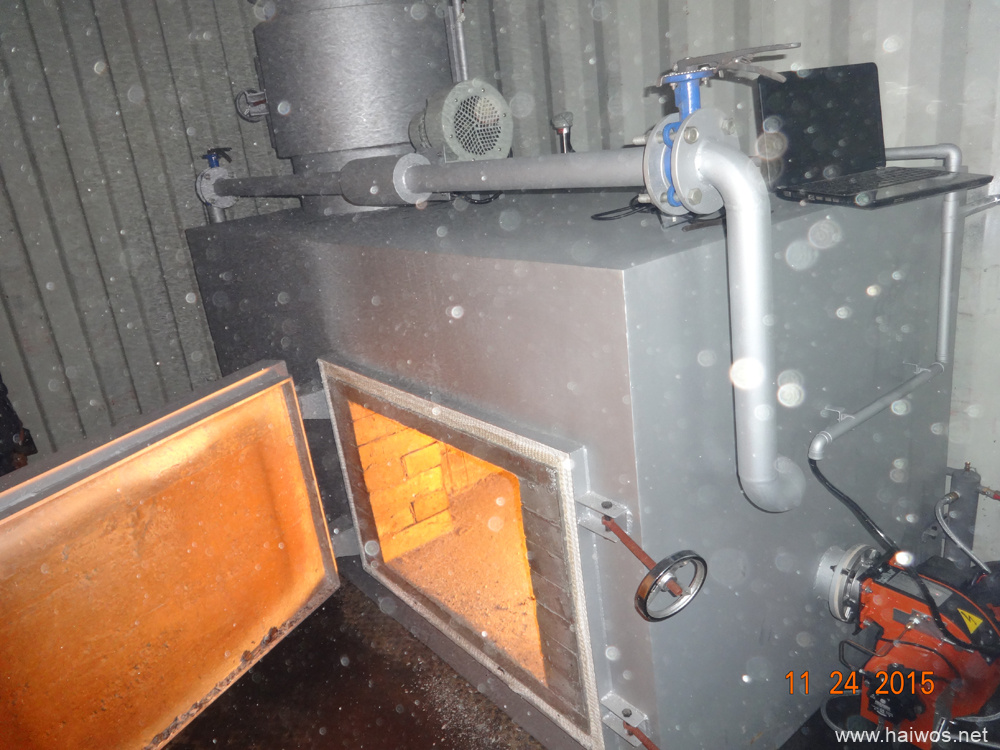

Containerized Mobile Incinerator(CA Model)

HICLOVER currently supply a complete array of containerized incineration systems, positioning us at the forefront of the most current transportation and also commercial trends.

Containerization is the most practical and also viable option in contrast to the building of on-site facilities and also real estate frameworks, getting rid of the guy power and also costs entailed.



Main Feature:

— Double Combustion Chamber

— Double Italy Burner

–Burning Rate: 10-100kgs per hour

–Combustion Chamber: 0.1M3-1.2M3

— Mobile Incinerator, Standard shipping containers, Easy to move/transport system

— Free Installation, Pre-installed incinerator, Ideal for camps

— Ultraviolet lamp sterilization inside

※Optional Function/Parts/Material/Burning Rate:

— Stainless Steel Chimney

— Dry Smoke Filter Chamber

— Chimney Height Custom Made

— Upgrade/Downgrade Burning Rate



Containerized Incinerators


Model CA50
Feed Capacity Average 60 kgs per feed
Burning Rate Average 70 kgs per hour
Burning Time per Feed 1 hour
Voltage 220V
Power 0.7Kw
Fuel Diesel oil
Burner Italy Burner
Feed Mode Manual
Fuel consumption (Oil) Average 18 Kgs/Hour
Internal Dimensions 100x80x70cm (Primary Chamber)
External Dimensions 230 x 130 x 155cm (main body)
Waste combustion chamber 560Liters
Post Combustion Chamber 280Liters
Oil Tank Capacity 100 Liters
Door Opening 70 x 50cm
Chimney 5.0M
Gross Weight 4500kgs
Chamber Material Firebrick ,Refractory Concrete
Max. Heat Value 240,000Kcal/Hr.
Operation Technical Specifications
Solid Chamber temperature 8000C -10000C
Gas Chamber temperature 10000C -12000C
Chamber Anti-Rate 14500C
Residency time 2.0 Sec.
Burning efficiency >98%
Waste Lower Calorific Power 3000Kcal


SIC opts for new mix of burning and recycling

SHETLAND Islands Council is to introduce “door-to-door” recycling of glass and cans next summer – but paper, card and plastic will be burned in the Gremista incinerator after that was found to be the “best practicable environmental option”.
The Gremista waste to energy plant
While the notion of burning garbage may seem counterintuitive to those seeking to make the planet greener, the local authority’s stance is backed up – at least in the short term – by Zero Waste Scotland.

The waste-to-energy plant burns material from Shetland, Orkney and occasionally the Highlands, and its output then powers SHEAP’s district heating scheme for homes in Lerwick.

Because Shetland is not connected to the national grid, SHEAP has to make up any shortfall in energy using power generated by oil-fired plants. As a result, the council says, it is less environmentally damaging to incinerate material rather than recycle it.

In April 2013 the council abandoned kerbside collection of recycled material in Lerwick and Scalloway – leaving householders to take plastic, glass, newspapers and cans to collection points instead.

The latest recycling rethink is the upshot of two studies commissioned by Zero Waste Scotland, and will cost the local authority £40,000 more than it presently spends on collecting waste and recyclable materials.

Meanwhile, opening hours for the local authority’s Gremista waste management site are to be cut to allow staff to spend more time sorting industrial waste prior to incineration.

It is to switch to opening between 1pm and 6pm on weekdays and from 11am to 3pm at weekends. That is a significant reduction on the current opening hours of 8am-8pm from Monday to Friday and 9am-5pm on Saturdays and Sundays.

It is expected a charge will be levied on commercial and business premises – accounting for an estimated 20 per cent of waste – for recycling glass and cans.

Infrastructure director Maggie Sandison said changes in legislation left the SIC with no option but to change tack. The situation remains in flux, with further legislative changes expected, and she suspects that in the long term the council will be “recycling more and incinerating less”.

Collecting glass and cans “at least” once a month from every islands household will raise the local authority’s overall recycling rate to around 12 per cent, compared to six per cent at present.

SIC infrastructure director Maggie Sandison.  SIC infrastructure director Maggie Sandison.  Shetland will continue to recycle the lowest percentage of material anywhere in Scotland, trailing far behind the SNP Government’s target of recycling 70 per cent of waste by 2025.

But Sandison’s report pointed out that Zero Waste Scotland recognised that –until an alternative heat source to the energy recovery plant is found – “environmental benefits of waste incineration to heat the district heating scheme outweigh the environmental benefits of recycling combustible materials in Shetland”.

A special derogation from environmental regulator SEPA will be required to allow the energy recovery plant to continue burning hard plastics.

She told members of the environment and transport committee on Monday that the plan was to begin the new recycling collection next summer.

Door-to-door collections will help sort municipal waste, but more staff resources will be required to ensure industrial waste is properly sifted through prior to incineration.

“It will require different staffing,” she told environment and transport committee members. “We’re looking to change the opening hours of the waste management facility in order to redeploy staff to sorting waste rather than just accepting it through the gates.”

Sandison said staff would spend the remainder of 2014 looking at the best way to collect recycling, with an eye to Orkney where a similar door-to-door service was recently rolled out.

While “bring sites” for recycling will no longer be used by the council, Sandison said talks were being held about putting in place more textile banks for the Salvation Army “and they can choose what ones they want to use”.

The committee backed the report’s recommendations without objection on Monday, a move welcomed by chairman Michael Stout.

“There are many, many threads to this,” he said, “and I think from my perspective this gives us the best way out of the particular set of circumstances that we find ourselves in.”

Councillor Steven Coutts said he felt there was an opportunity for the council to be “proactive” in encouraging folk to minimise the amount of waste they generate, meaning there would be less material to recycle or burn in the first place.

Sandison agreed, saying the council should also promote reuse, while government regulations should reduce the extent to which things like fruit and vegetables are “wrapped in vast amounts of plastic”.

“We’ll see less and less [waste] when charges incurred in the manufacture of waste start to make that unattractive,” she said. “There are going to be big changes in waste generation as well as recycling as legislation proceeds.”

Burning and Incineration Methods


quantity of solid waste that must ultimately be disposed of. In general,

Figure 1 — Open Burning on the Earth

The burning and incineration procedure used is a major factor in determining what kind of waste can be safely and efficiently disposed of. The methods widely utilized in Nunavut contain open burning off the floor, unmodified burn barrels and assorted mechanical incineration systems.  Other helpful methods include the use of burn boxes and modified burn barrels. Each procedure is discussed individually in the subsequent sections.

2.1.1    Open Burning

Open burning means the burning of waste at which limited or no control over the combustion process can be exercised by the operator. This method involves burning solid waste right on the open floor or in burn boxes or burn barrels and often does not attain the temperatures or holding time needed for complete combustion of the waste to occur.  This results in the formation of potentially hazardous pollutants and ashes, which are likely to affect nearby land and water. Food waste that is not entirely burnt through open burning can also be a powerful attractant for creatures.

The various open burning methods can also pose a risk of uncontrolled plant and tundra fires throughout the release of hot sparks or embers. The amount of fire risk is contingent on the sort of open burning utilized, its place, the art of the operator and the environmental conditions that exist at the time (i.e. dryness of the surrounding vegetation( end ). It is the policy of this Department of Environment to remove or minimize open burning of mixed solid waste to the extent practicable and to promote more acceptable methods of disposal and incineration.

Open Burning on the Ground

Open burning on the floor involves burning solid waste that’s been piled right on the surface of the floor or placed in a tiny open pit. Most large and Tiny districts and communities operators at Nunavut continue to practice open burning on the floor as a
Evenly spaced holes or vents cut over the base of the barrel supply heat. These attributes provide for increased passive under-fire ventilation and promote better contact between the waste being burnt and incoming air. The basket fit is wrapped with a hinged lid and a chimney vent for attachment of an exhaust pipe or stack. The lid helps to improve heat retention and holding time inside the barrel while also allowing for easier loading and mixing of this waste. The removable mesh basket allows entry to this unburned bottom ash.

Modified burn barrels can be built using commonly available substances. They can either be pre-built locally or hauled to the site for meeting. Detailed construction plans are provided in Appendix 2.

Although modified burn barrels are intended to make an edge over open burning off the floor, burn boxes and unmodified burn barrels through achieving greater burn temperatures and enhanced turbulence and controlling time, stopping combustion of waste and the release of  pollutants to the air continue to be possible. In reality, emissions testing by Environment Canada to a modified burn barrel in April 2011 imply that these devices don’t provide any improvement over open burning off the floor in terms of

Figure 4 — Modified Burn Barrel

emissions quality, especially if wet food waste is added to the waste mixture. Other common  problems include readily overfilling the unit and loading waste that should not be burnt (refer to section 3.2).  Wet or suspended masses of waste are especially hard to burn along with the resulting partly burned food waste could still attract animals. The appropriate operation of modified burn barrels is critical to achieving the best burn potential. Basic operating instructions are offered in section 4.1.

Burn barrels are effective at burning only tiny volumes of solid waste. Like burn boxes, they reduce the risk of fire spreading to plant and tundra by comprising the burning waste to a certain site.

The unmodified burn barrel is generally a 45 gallon, or 205 litre, metal fuel or oil drum with the top removed. These devices typically operate at a very low temperature leading to incomplete combustion of the waste and generation of large volumes of smoke and fly ash.

A modified burn barrel is a 45 gallon metallic gas or petroleum drum that’s been affixed with features or devices which bring about higher burn temperatures, better mixing of the air and also a longer holding time.
Constructed with hinged shirts to enable easier loading and cleaning.

Unlike open burning off the floor, burn boxes help to contain the burning waste within a particular place reducing the possibility of fire spreading to other disposal areas or surrounding tundra, while still enabling moderate amounts of solid waste to be burnt.

Burn Barrels

There are two standard types of burn barrels — the unmodified burn barrel and modified burn barrel.

Burn Boxes

There are two standard types of burn boxes. The enclosed burnt box is constructed using heavy sheets of metal or other alloy whereas the open burn box has been constructed using expanded metal grating. The latter kind is often referred to as a burn cage. These devices aren’t commercially-available in Nunavut, but can be built using locally available materials. For example, the enclosed metal burn box displayed in Figure 2 is created from a dump truck bed and steel plating.

Photo courtesy of Alaska Department of Environmental Conservation

Burn boxes are regarded as a modification of open burning. Combustion air is provided passively using a pure draft making power unnecessary. Burn boxes are single chambered units.  Waste is raised off the bottom of the box by putting it on grates inside the unit. Unburned bottom ash falls through the grate through burning off making removal easier once a decent amount has accumulated. Combustion air in enclosed burnt boxes is usually provided by cutting holes near the base of the box allowing for better mixing together with the burning waste.

Open burn boxes, or burn off cages, are still an improvement over enclosed burnt boxes because the waste is subjected to natural drafts throughout the metal grating on all surfaces such as the bottom. This permits air to better mix together with burning waste and promotes more efficient combustion during the burning interval.

Figure 4 – Modified Burn Barrel

emissions quality, particularly if wet food waste is added to the waste mixture. Other common  problems include easily overfilling the unit and loading waste that should not be burned (refer to section 3.2).  Wet or frozen masses of waste are particularly difficult to burn and the resulting partly burned food waste may still attract animals. The proper operation of modified burn barrels is critical to achieving the most efficient burn possible. Basic operating instructions are provided in section 4.1.

Burn barrels are capable of burning only small volumes of solid waste. Like burn boxes, they reduce the risk of fire spreading to vegetation and tundra by containing the burning waste to a specific location.


Incinerator Equipment


Basic Info.

Pullution Sources:Solid Waste Processing
Processing Methods:Combustion
Export Markets:Global

Additional Info.

Trademark:Nanjing Clover

Product Description

TS version PLC incinerator is newest layout for waste treatment, include health care waste, animal cremation and other solid waste. This equipment quality structural for kinds of site, such as medical waste maker, medical waste pyrolys, medical waste sterilization”300kg”, medical waste suppliers china, medical waste treatment china, hospital, environmental division, animal cremation services, etc… CLOVER Incinerator supply updated versions with dual combustion chamber and smoke filter chamber using refractory lines, and the combustion chamber temperature up to 1200 deg C.

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
1st. Chamber Temperature 800–1000 degree 800–1000 degree 800–1000 degree 800–1000 degree 800–1000 degree
2nd. Chamber Temperature 1000-1200 degree 1000-1200 degree 1000-1200 degree 1000-1200 degree 1000-1200 degree
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

Incinerator


Basic Info.

Pullution Sources:Solid Waste Processing
Processing Methods:Combined Water Treatment
Export Markets:Global

Additional Info.

Trademark:clover

Product Description

Key Features:

* All models with Dual combustion chamber.  * Stainless Steel chimney/stack, long lifetime. *according to sequence * High temperature, long lifetime of incinerator.  * Free or minimum installation onsite.  * High burn rate, from 10kgs to 500kgs per hour, up to 6ton daily.  * PLC Control Plane. *according to order  * New Design for pet animal cremation business.  * One year warranty on incinerator and components in stock.

Program Scope:

1. Hospital& clinic: Iatric Waste, Infectious Waste, Dressing, Bio-Waste, Medicine.  2. Slaughter House &Pet Hospital &Farm: Dead Animal, Bio-Waste.  3. Laboratories, Remote Locations, Disaster Relief Operations, Animal Cremation

Items Specification
Model TS10(PLC) / TS20(PLC) / TS30(PLC) / TS50(PLC) / TS100(PLC)
Main Product List Double Combustion Chamber
Smoke Filter Chamber
PLC Mode Control Case
Stainless Steel Chimney
Italy oil/gas burner: 02 units
Oil Tank (if oil fuel)

medical waste incinerator

medical waste incinerator: medical waste and general waste
Capacity to burn waste: 400 — 500 kg/hr
Fuel: Diesel
Fuel Consumption: 10 litres/hr maximum
Incineration temperature: 950 – 1300 °c
Casing: thick (min 5 mm) Stainless steel casing and fully
insulated to withstand sea humidity
Voltage: 220/240 V or 380/415V
Frequency: 50 Hz
Feeding: automatic
Ash 1 leftovers removal: Automatic
Fuel gas filtration system: Yes
Warranty: 12 months
Staff training: Operator & Maintenance staff
Operation and service manuals: 3 sets each
Especifica??es Gerais     6 mm plate steel sheel construction
11cm 1400°C refractory Liner
temperature controlled Burners
secondary combustion burners
interlock switch on load doors
separete ash door
one secondary residence @ 1000°C
400°C silicone Based finish paint
alloy temperature sensor
factory wired and tested
Capacity    20kg/hr
primary Chamber    1607 L
Hearth area    1.36 aq.m
Secondary Chamber    694L
Primary burner (oil)    420.00btu
Secondary burner (oil)    900,000btu
Secondary combustion    1/6 hp
Exhaust stack    46cm x 6m
Electrical service     220/50
System weight    5,700kg
Dimension “D”    152cm
Doad port height e    60x60cm
Ash port height e    36x36cm
General Specifications    6mm plate steel sheel construction
11cm 1400 ° C refractory liner
temperature controlled Burners
secondary combustion burners
interlock switch on load doors
separete ash door
one secondary residence @ 1000 ° C
400 ° C silicone based paint finish
alloy temperature sensor
factory wired and tested
Capacity    20kg/hr
primary Chamber    1607 L
Hearth area    1:36 aq.m
Secondary Chamber    694L
Primary burner (oil)    420.00btu
Secondary burner (oil)    900,000 btu
Secondary combustion    1/6 hp
Exhaust stack    46cm x 6m
Electrical service    220/50
System weight    5.700 kg
Dimension “D”    152cm
Doad port height and    60x60cm
Ash port height and    36x36cm
medical, hospital, veterinary and industrial wastes by medical waste incinerator Process.
So, we’re interested with your Incinerator plants, and we’d like to get quotation and key features description of different capacities of your Incinerator plants, concerning: small models (5 – 25 kg/hr); medium models (25-50 kg/hr) and big models (50-100 kg/hr) and plus.
