Containerized Incinerator

Now you can move your incinerator by truck to anywhere!

Containerized waste incinerator is our latest design for market. This incinerator is build in ISO container before leave factory. After customer received container, install the chimney and connect with electric power and setup oil tank, that’s all. Now, the burning capacity can be 30 kgs/50kgs/100kgs per hour for ISO 20’feet container. This moveable/mobile incinerator can be move by truck to any site by local customer.

This kind of incinerator is good choice for different end-customer site, Service personnel can move to there and service at local site. It is also best service type for family pet cremation service and other emergency status.

pet incinerator for sale


1.    Capacity of destruction in weight: 60 Kg/h.
2.    It should be able to operate not less than 10 hours/day
3.    This incinerator must be able to destruct all combustible wastes produced by hospitals, private clinics, laboratories, institutes, etc…
4.    Design Specification : Types A, B, C, D, and E of medical waste
5.    “PYROLYTIC” combustion, by controlling the gasification of waste.
6.    The incinerator must avoid the release of black smoke and fine dust, during the loadings.
7.    It should be able to reduce the volume of wastes by 98%.
8.    It should be able to hold emission in the second burn with gas residence of not less than 2 seconds.
9.    The incineration should be completely free from visible smoke as well as offensive odours.
10.    The lower calorific power (L.C.P) of this waste will be 3,500 kcal/kg
?    The Temperatures of combustion: Minimum will be 850oC and max 1400oC
?    Post combustion: >1100oC.
11.    The Internal diameter of the Chimney: ? 400 and its height: 8 m
12.    The Volume of the combustion chamber: 1.200 L
13.    The Dimension of the door for loading in cm: 70×70.
14.    Burner operation should be Automatic On/Off
15.    Fuel : diesel
16.    The supplier must provide  necessary information for the best of  the installation
This incinerator with “PYROLYTIC” combustion must have:
17.    A combustion chamber of waste:
* Perfectly tight door for the manual loading of waste. The loading should be Manual, Batch Load
* A burner of lighting which the use is limited to the ignition of waste.
* Frontage of loading with door seals gone up on hinges, wheel of screw plug, flexible joint, and stuffing insulating out of refractory.


hospital waste incinerator




Height: 82″ (208 cm) without pile, 100″ (254cm) with pile

Width:  39.5″ (99 cm) burn chamber, 58″(147cm) at foundation

Length: 62″ (157 cm) overall, 34″(86 cm) at foundation

Weight: 1800 ibs (approximately 816 kg)



Primary Chamber Volume: 10.5 cu.ft. (.28 cu/m)

Suggested Load Volume: 8 cu ft. (22 cu/m) load

Diameter of Stack: 12″ OD (30 cm)

Fuel: Diesel hospital waste incinerator

Fuel Consumption: 3-5gallons/hour (11-18 litre/hour)

Location: Level surface 7 ft (2 meters) from closest construction.


diesel fired incinerator

diesel fired incinerator that can accommodate a batch load of up to 100 kg with a daily burning requirement of up to 500kg per 8 hour day. air pollution regulations in which the dust level should be less 50 mg/m3 with smokeless emissions.Our electrical power supply is 415V, 3 phase, 50 Hz.
DSC00453_看图王

In With Climate Change, In With “Super” El Niños

Climate Change

Climate Change

We live in a world where people love to have their cake and eat it, too. We want a clean house without having to clean. We want to be, but we don’t want to do. We want to stop global warming and climate change, but we don’t want to change our daily habits. We want to avoid things like climate-change induced natural disasters, but we aren’t willing to put in the work to prevent it.

There is hope, yes, but time is running short. We’re at the point where convincing people to live greener and be nicer to the environment has to come with a dire warning of impending doom. It sounds a bit melodramatic, yes, but it’s true.

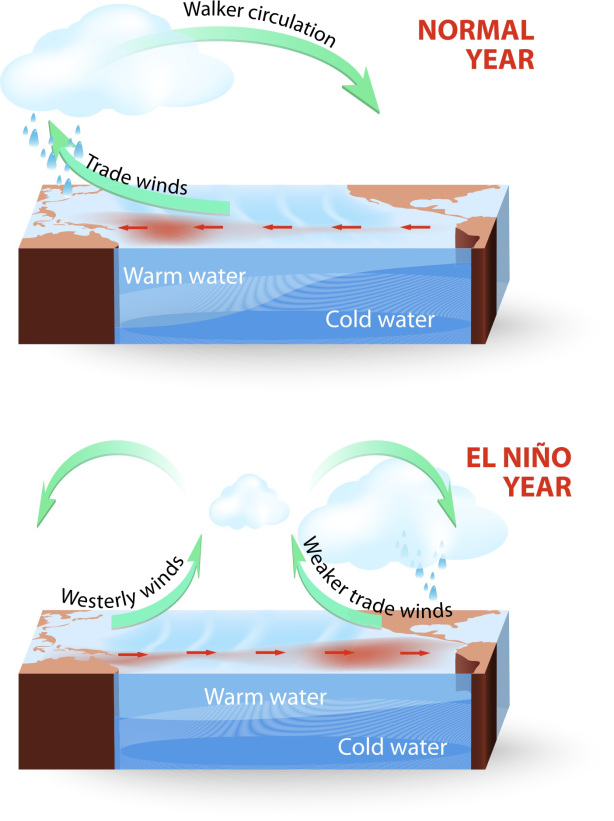

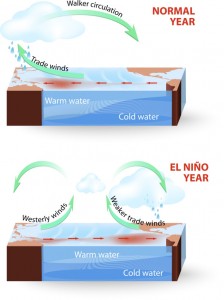

And now scientists have one more thing you can add to your dire warning speech: the fact that the occurrence of “super” El Niños is likely to double as our planet continues to warm. El Niño refers to an unusually warm water pattern that stretches across the eastern equatorial Pacific every 3-7 years. And every once in a while, we see a bigger one, such as the super El Niño of 1997-1998 and one in 1982-1983. With these super El Niños often comes a slough of other weather-related debauchery like heavy rains, landslides, wildfires, and more. In 1997-98, there were an estimated 23,000 deaths worldwide and $35-$40 billion in damage attributed to El Niño.

Whereas now the likelihood of a super El Niño is one every twenty years or so, as the planet warms that number will change to one every ten years. El Niños will still occur on about the same schedule, but more of them will be abnormally strong.

The study that predicted these changes was conducted by Wenjun Cai and a team of researchers at the Commonwealth Scientific and Industrial Research Organisation in Australia. The findings were published in Nature Climate Change.

Medical waste incinerator for sale


Waste Kind: health care waste

Throughput: 50kg/hr at a nominal calorific value of 4,000kca/kg along with an average bulk density of 120kg/m3 for overall waste and 160kg/m3 for healthcare waste.
Coaching: the Agent will conduct a 2 days incinerators training following installation and commissioning of the equipment.

The Agent shall conduct a 2 days operation & maintenance training into the Biomedical engineering personnel following installation & commissioning of the equipment.

It is carried from the ground level on a considerable steel support frame.  Internally the shell is lined with calcium silicate insulation and a hot face mixture of super obligation brickwork or higher strength castable.

the principal combustion chamber must ensure minimal exit temp is not significantly less than 850? C.
Waste density: 125 into 350Kg/M3
Main Combustion chamber:
Flue gas treatment:  should have particulate remover (scrubbers)
Limiting continuous service limitation 1500? C
Chamber: should really be refractory lined into the following standard;
Chimney/Stack: If be made from refractory lined mild steel or higher quality air-cooled s/s.
Medical waste incinerator for sale Operation manual: 2 sets
Burner: arranged for on/off operation
Fully packaged oil kind, complete with electric ignition and flame failure controls, wired with continuous running enthusiast and finish with valves, fan and motor.
Secondary room: 2 [email protected]? C
Average consumption: at least 4.5Ltrs/hr
1 off diesel-fired ignition burner — temperature controlled


Incinerator Label


Basic Info.

Export Markets:Global

Additional Info.

Trademark:nanjing clover
Origin:Nanjing Pr China

Product Description

Nanjing Clover Medical Technology Co., Ltd., Neighborhood in Nanjing city, China.

CLOVER supply medical equipment, medical waste incinerators, pet animal crematoralong with other solid waste treatment equipment, clean room equipment, fan filter units, air filter, etc.. We supply technology service, installation service and client produced.

We’re one of the largest waste incinerator producer and exporter of China. Pyrolytic incinerator specialized is primary waste treatment method all over the world, for oxidizer manufacturers, paper incinerator, pathological incinerator, pdf catalog incinerator capacity 100kg, Medical Waste, Animal Incineration, Pet cremation and other good waste. Presently, we supply small and large scale incinerators as local client requirements and layout updated incinerator with our leading technology.

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
1st. Chamber Temperature 800degree–1000degree 800degree–1000degree 800degree–1000degree 800degree–1000degree 800degree–1000degree
2nd. Chamber Temperature 800degree–1000degree 800degree–1000degree 800degree–1000degree 800degree–1000degree 800degree–1000degree
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

Nanjing Clover Medical Technology Co., Ltd.  Tel: +86-25-8461 0201  Fax: +86-25-8461 0406  Add: RM.

Laboratory Incinerator


Product Description

Nanjing Clover Medical Technology Co., Ltd..

Items/Model TS10(PLC) TS20(PLC) TS30(PLC) TS50(PLC) TS100(PLC)
Burn Rate 10 kg/hour 20 kg/hour 30 kg/hour 50 kg/hour 100 kg/hour
Feed Capacity 20kg 40kg 60kg 100kg 200 kg
Control Mode PLC PLC PLC PLC PLC
Combustion Chamber 100L 210L 330L 560L 1200L
Internal Dimensions 50x50x40cm 65x65x50cm 75x75x60cm 100x80x70cm 120x100x100cm
Secondary Chamber 50L 110L 180L 280L 600L
Smoke Filter Chamber Yes Yes Yes Yes Yes
Feed Mode Manual Manual Manual Manual Manual
Voltage 220V 220V 220V 220V 220V
Power 0.5Kw 0.5Kw 0.5Kw 0.7Kw 0.7Kw
Oil Consumption (kg/hour) 5.4–12.6 7.8–16.3 10.2–20 12.1–24 14–28
Gas Consumption (m3/hour) 6.2–11.4 8–15.7 9.8–20 9.9–26.1 10–32.2
Temperature Monitor Yes Yes Yes Yes Yes
Temperature Protection Yes Yes Yes Yes Yes
Oil Tank 100L 100L 100L 100L 200L
Feed Door 30x30cm 45x40cm 55x50cm 70x55cm 80x60cm
Chimney 3Meter 3Meter 5Meter 5Meter 10Meter
Chimney Type Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Residency Time 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec. 2.0 Sec.
Gross Weight 1500kg 2200kg 3000kg 4500kg 6000kg
External Dimensions 140x90x120cm 160x110x130cm 175x120x140cm 230x130x155cm 260x150x180cm

TS version PLC incinerator is newest design for waste treatment, include health care waste, animal cremation and other solid waste. This gear quality structural for types of site, such as hospital, environmental department, animal cremation services, etc… CLOVER Incinerator supply medical waste incinerator vendor, medical waste incinerator sellor in china, medical waste incinerator small scale, updated models with double combustion space and smoke filter room with refractory lines, and the combustion room temperature up to 1200 deg C.
